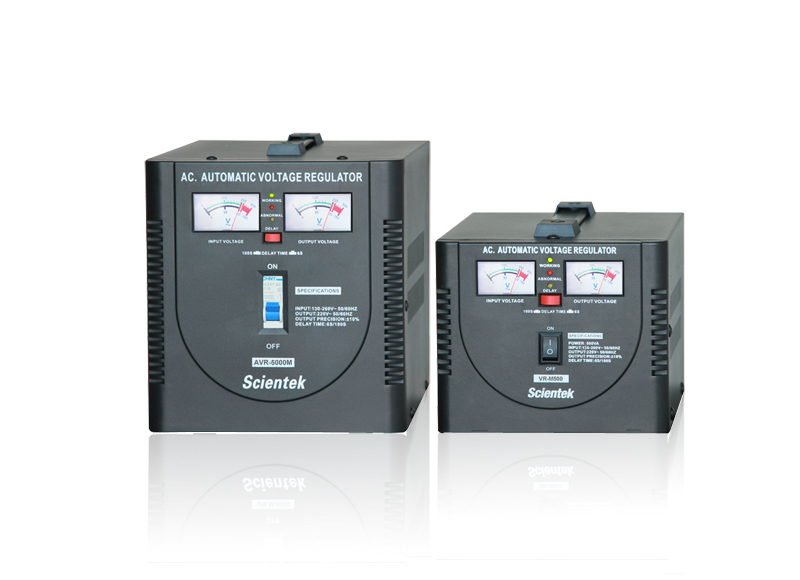

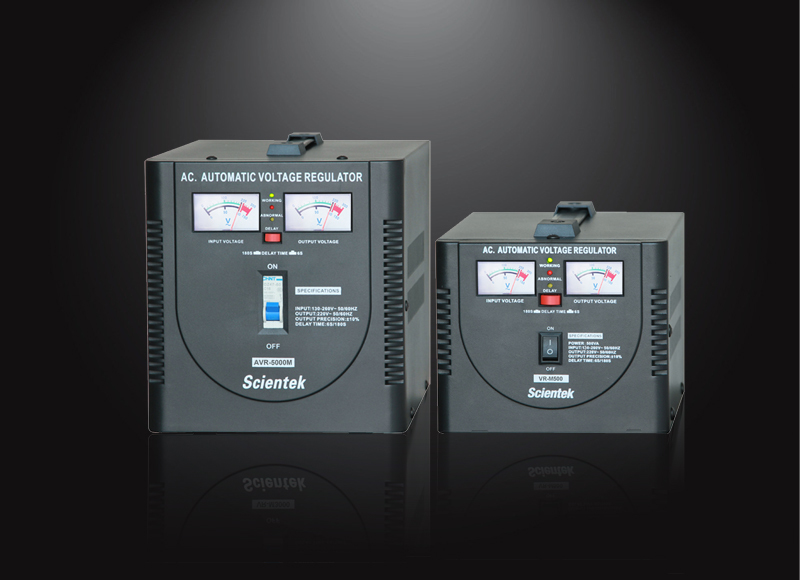

Relay Type Automatic Voltage Regulator AVR-M Series

Relay Type Automatic Voltage Regulator AVR-M Series

500VA 1000VA 1500VA 2KVA, 3KVA, 8KVA, 10KVA, 130-260V input voltage range, analog meter display, high efficiency toroidal transformer.

+8618942469075 +8613928660619 +8613928660619 sales@scientekpower.com

REQUEST A QUOTE

SPECIFICATIONS OF SINGLE PHASE AUTOMATIC VOLTAGE REGULATOR

AUTOMATIC VOLTAGE REGULATOR AVR-M SERIES
Automatic Voltage Regulator D Series

Brand New Wall mount relay type Automatic voltage Stabilizer AVS-P series

Three Phase SCR type Contactless high precision Automatic voltage regulator SBWZ series

AVS PRO series Automatic Voltage Stabilizer

AVS PLUS series Automatic Voltage Stabilizer

AVS Series Relay type Automatic voltage Stabilizer

3 Phase Servo Motor automatic voltage regulator stabilizer SBW Series

3 Phase Servo Motor AVR SVC33 Series

Model	AVR-500M	AVR-1000M	AVR-1500M	AVR-2000M
Nominal Power	500VA	1000VA	1500VA	2000VA
Rated Power	300Watts	600Watts	900Watts	1200Watts
Power Factor	0.6~1.0	0.6~1.0	0.6~1.0	0.6~1.0
Input
Operating Voltage Range	115~280VAC
Regulation Voltage Range	130~260VAC
Frequency	50Hz
Connection Type	Power cord with plug
Output
Operating Voltage	180~255VAC
High Cut Voltage	255V
Low Cut Voltage	180V
Frequency	50Hz
Safety Cycle	6 Seconds / 180 Seconds Selectable
Connection Type	Output socket
Regulation
Regulation %	± 8% (when input 130~260VAC)
Number of Taps	5
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators
Working	Green LED ON
Delaying	Yellow LED ON
Fault / Protection	Red LED ON
Voltage Meter	1 input & 1 output volt meter
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Breaker / Fuse	1 x5A /250VAC Circuit Breaker	1 x7A /250VAC Circuit Breaker	1 x10A /250VAC Circuit Breaker	1 x12A /250VAC Circuit Breaker
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	200x150x140(mm)	200x150x140(mm)	200x160x190(mm)	200x160x190(mm
Net weight	2.3kgs	3.3kgs	4.0kgs	4.9kgs

Model	AVR-3000M	AVR-5000M	AVR-8000M	AVR-10000M
Nominal Power	3000VA	5000VA	8000VA	10000VA
Rated Power	1800Watts	3000Watts	4800Watts	6000Watts
Power Factor	0.6~1.0	0.6~1.0	0.6~1.0	0.6~1.0
Input
Operating Voltage Range	115~280VAC
Regulation Voltage Range	130~260VAC
Frequency	50Hz
Connection Type	Input terminal block
Output
Operating Voltage	180~255VAC
High Cut Voltage	255V
Low Cut Voltage	180V
Frequency	50Hz
Safety Cycle	6 Seconds / 180 Seconds Selectable
Connection Type	Output terminal block
Regulation
Regulation %	± 8% (when input 130~260VAC)
Number of Taps	5
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators
Working	Green LED ON
Delaying	Yellow LED ON
Fault / Protection	Red LED ON
Voltage Meter	1 input & 1 output volt meter
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Breaker / Fuse	1 x20A /250VAC Circuit Breaker	1 x25A /250VAC Circuit Breaker	1 x40A /250VAC Circuit Breaker	1 x50A /250VAC Circuit Breaker
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	280x200x225(mm)	280x200x225(mm)	410x280x310(mm)	410x280x310(mm)
Net weight	6.8 kgs	8.6 kgs	13.5 kgs	15.5 kgs
