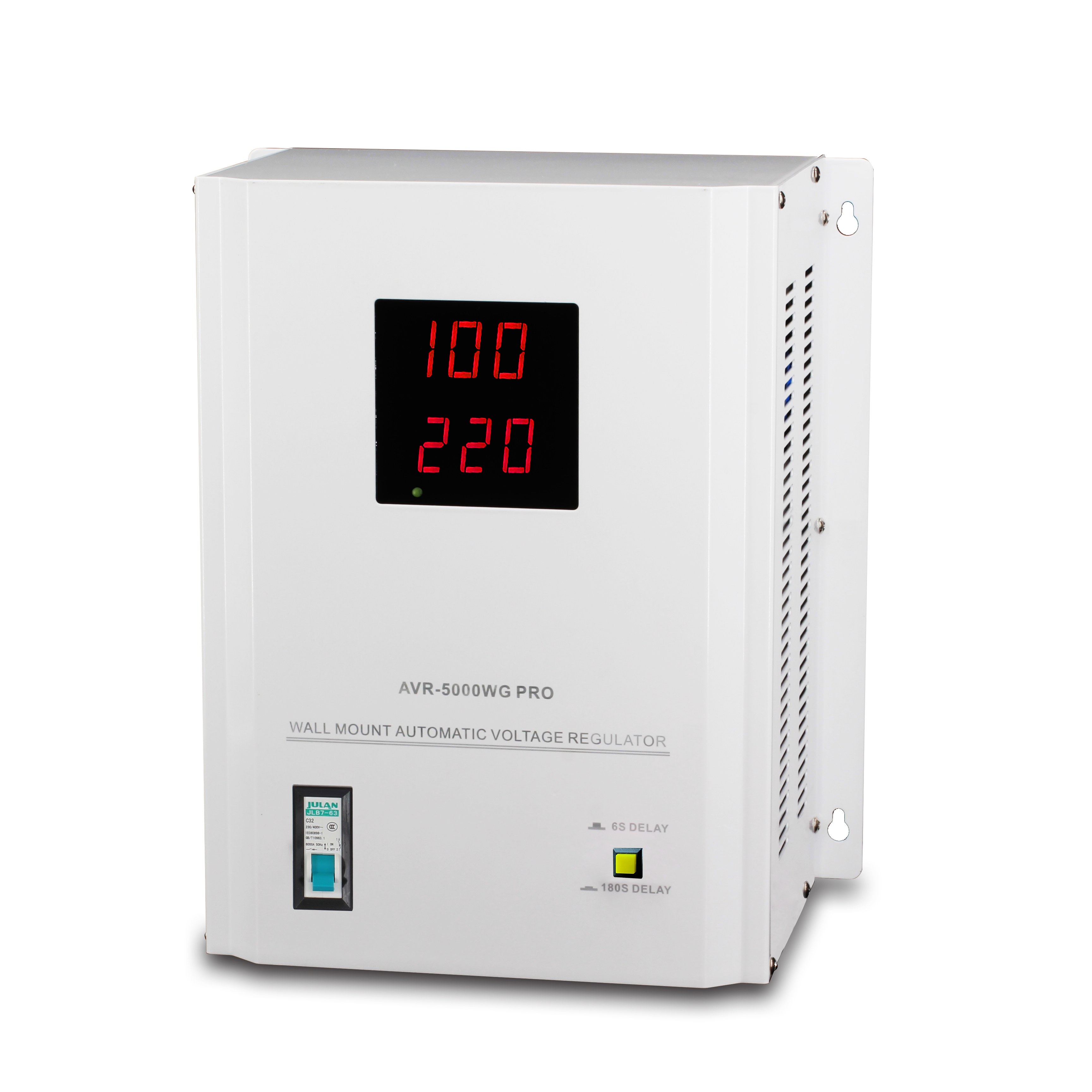

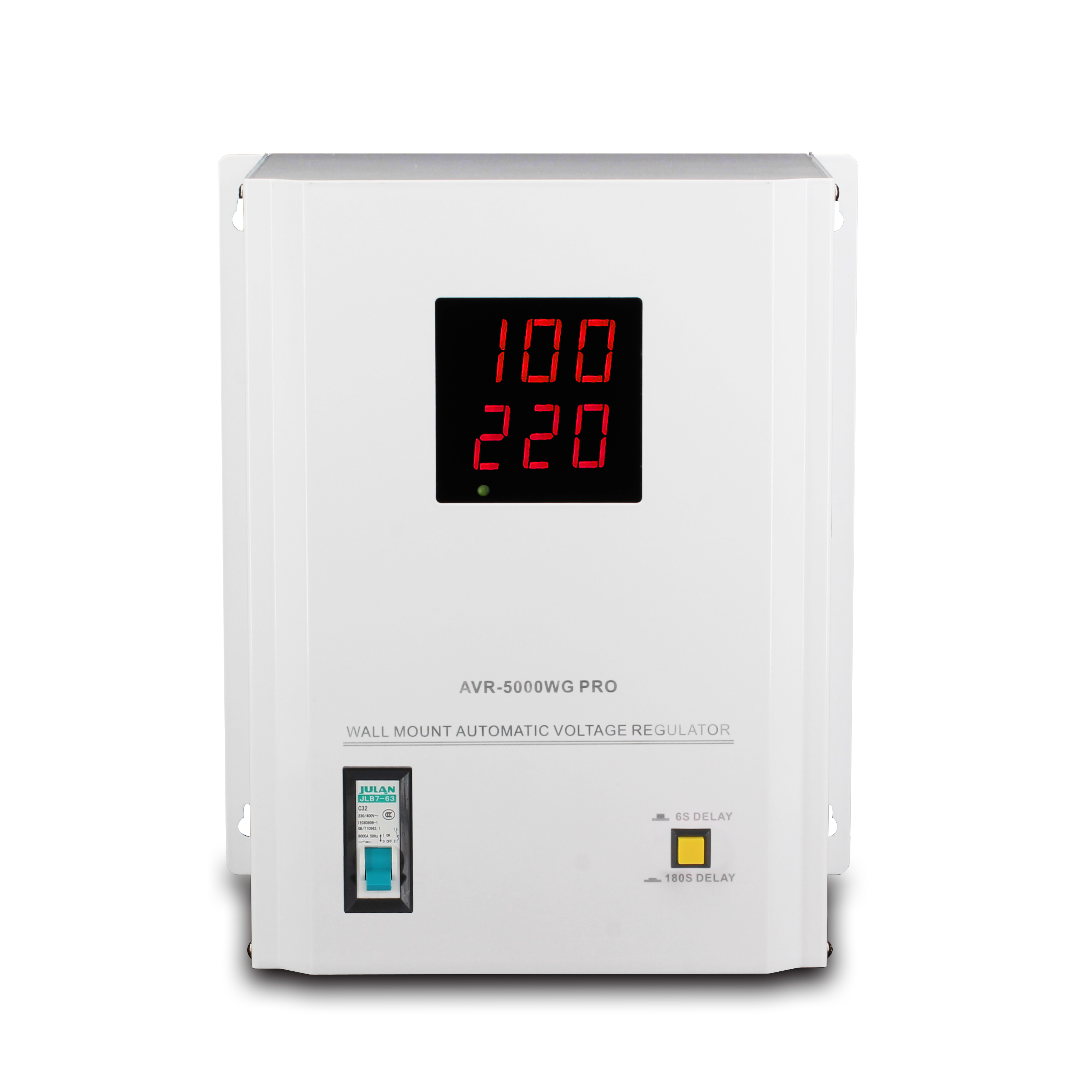

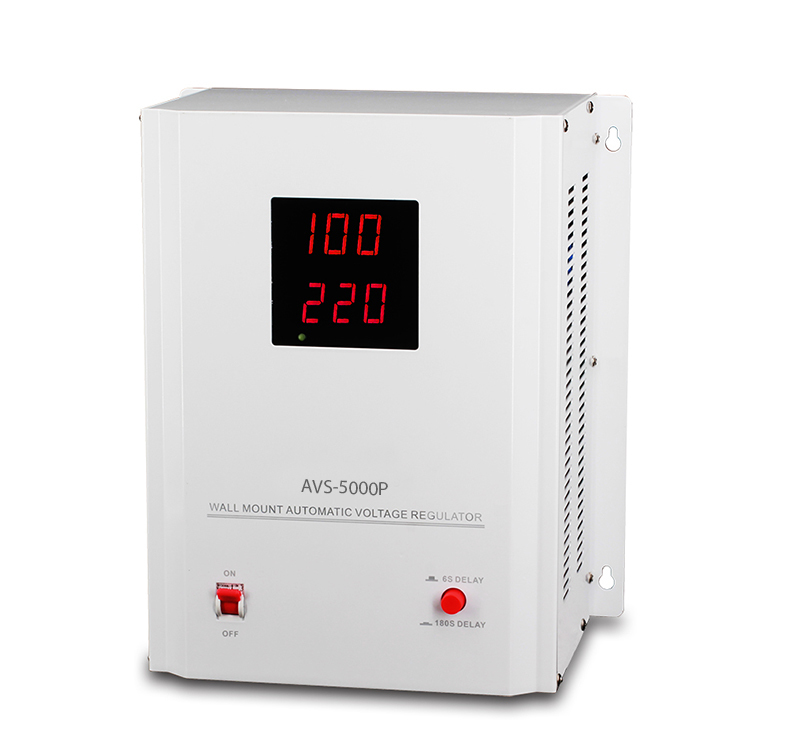

Brand New Wall mount relay type Automatic voltage Stabilizer AVS-P series-SCIENTEK ELECTRICAL

Model	AVS-500P	AVR-1000P	AVR-1500P	AVR-2000P	AVR-3000P	AVR-5000P	AVR-8000P	AVR-10000P
Nominal Power	500VA	1000VA	1500VA	2000VA	3000VA	5000VA	8000VA	10000VA
Rated Power	300W	600W	900W	1200W	1800W	3000W	4800W	6000W
Power Factor	0.6~1.0
Input
Regulation Voltage Range	140~260V/ 100~260VAC
Connection Type	Power cord with plug				Input terminal block
Output
Output Voltage Range	180~255VAC
High Cut Voltage	255V	255V	255V	255V	255V	255V	255V	255V
Low Cut Voltage	180V	180V	180V	180V	180V	180V	180V	180V
Frequency	50/60Hz Auto Sense
Safety Cycle	6 Seconds / 180 Seconds Selectable
Connection Type	Output sockets				Output terminal block
Regulation
Regulation %	± 8% (when input 100~260VAC)
Number of Taps	7 taps

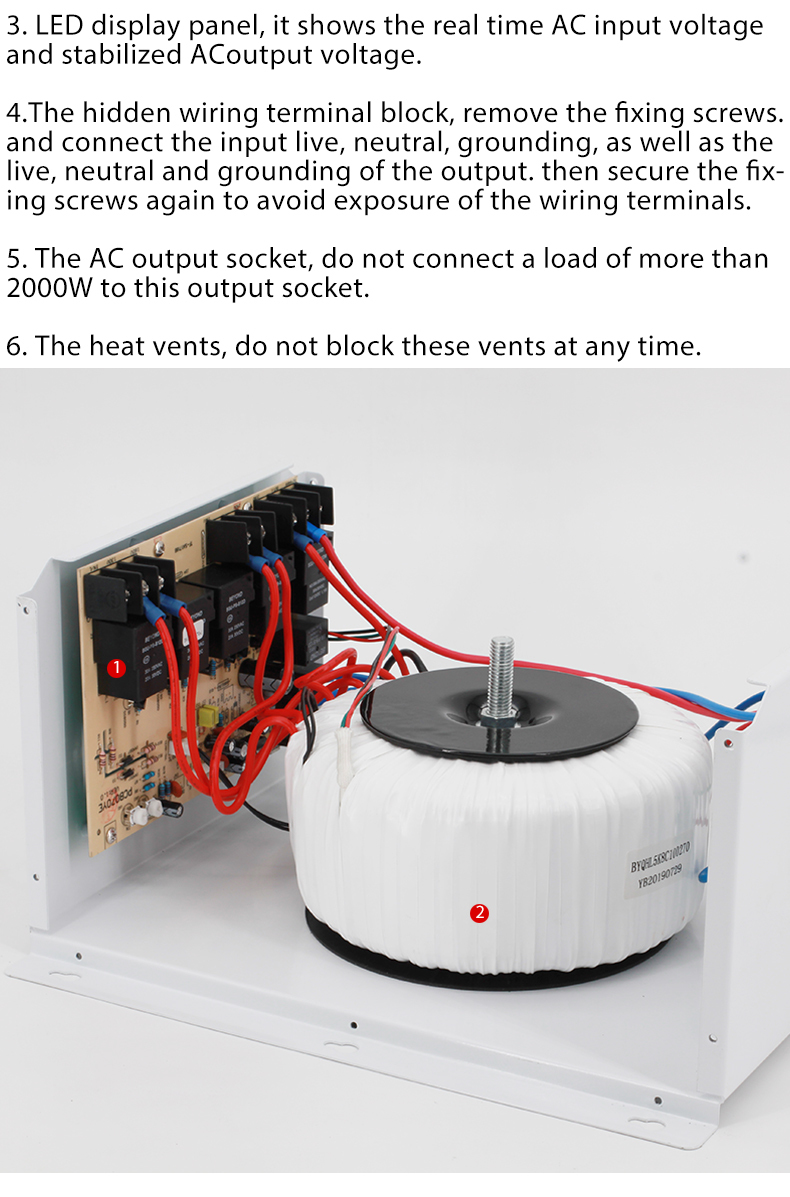

Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators
LED indicators	POWER: Green LED ON, Delaying: Yellow LED ON, Fault / Protection: Red LED ON
Voltage Meter	1 input & 1 output LED volt meter
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Breaker / Fuse	5A	7A	10A	12A	20A	25A	40A	50A
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	180x170x100(mm)		210x170x100(mm)		260x220x125(mm)		380x308x160(mm)
Net weight	2.4kgs	3.5kgs	4.2kgs	5.1kgs	6.9kgs	9.2kgs	13.5kgs	15.8kgs

Brand New Wall mount relay type Automatic voltage Stabilizer AVS-P series
