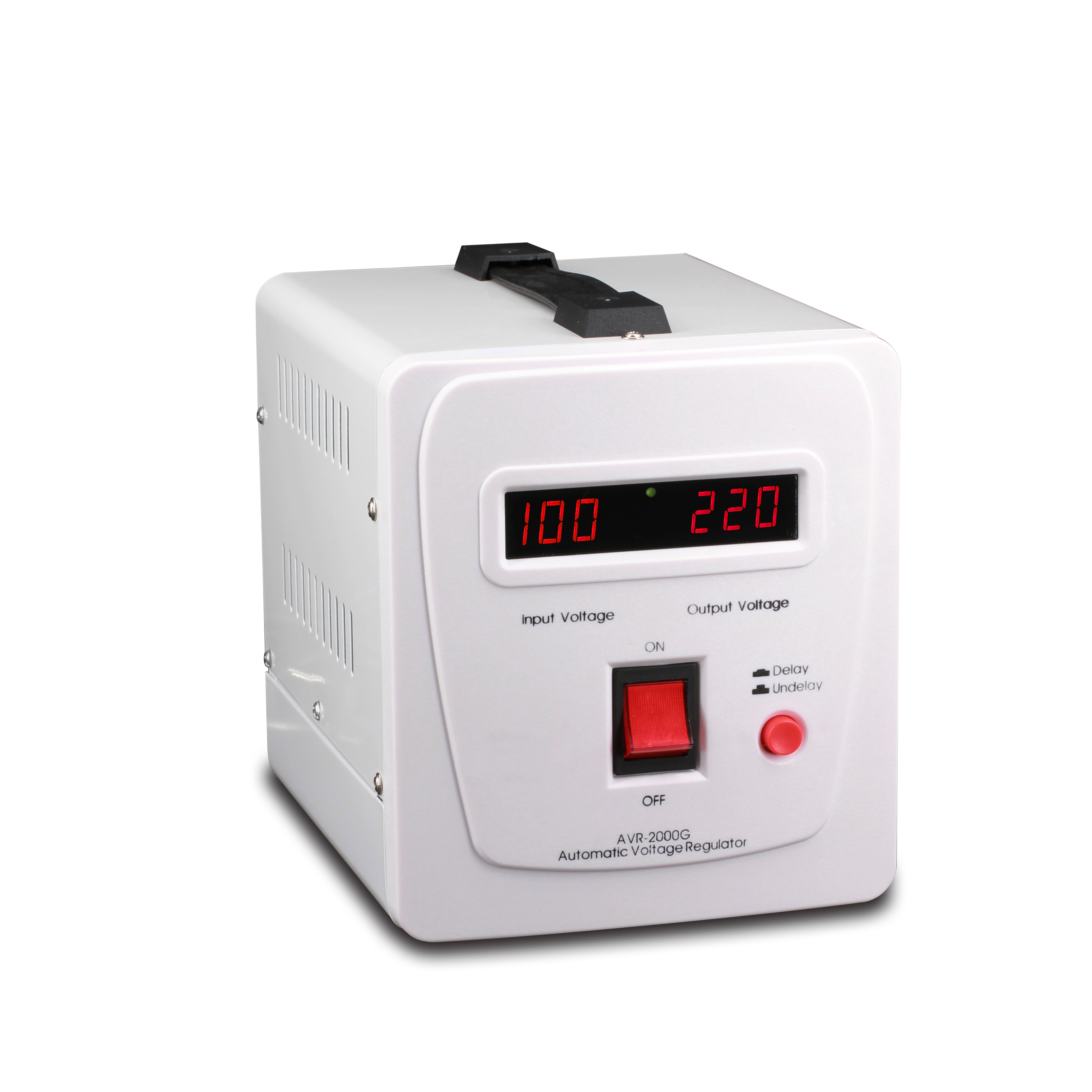

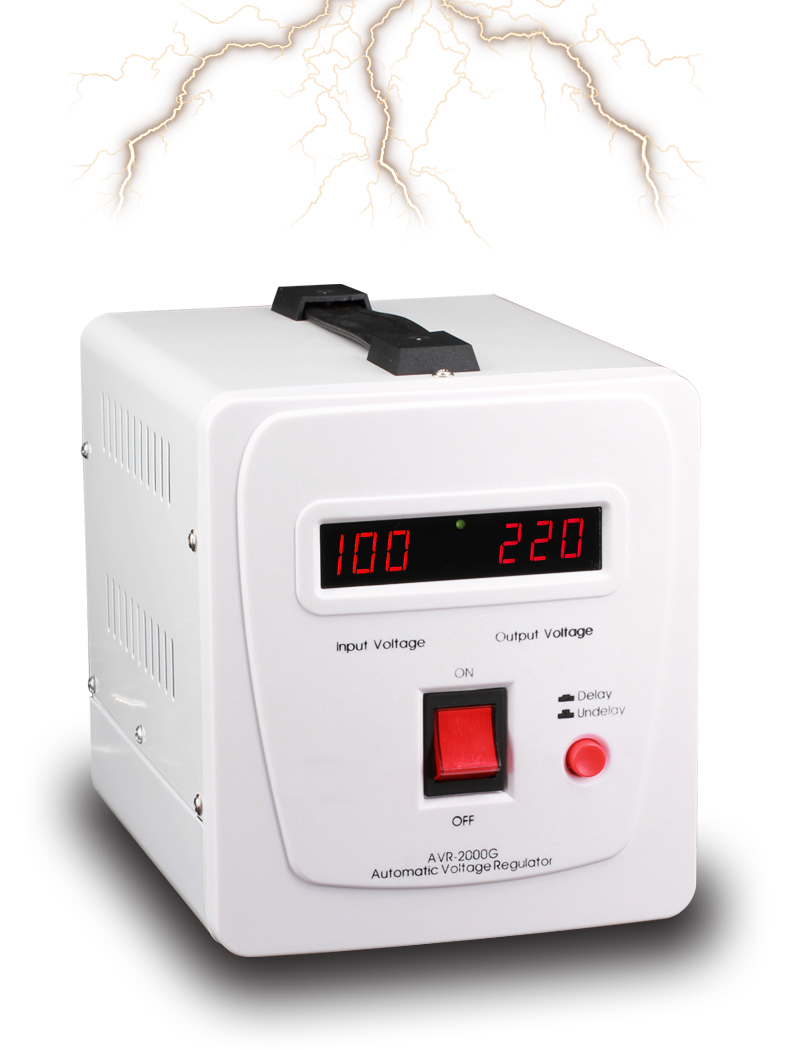

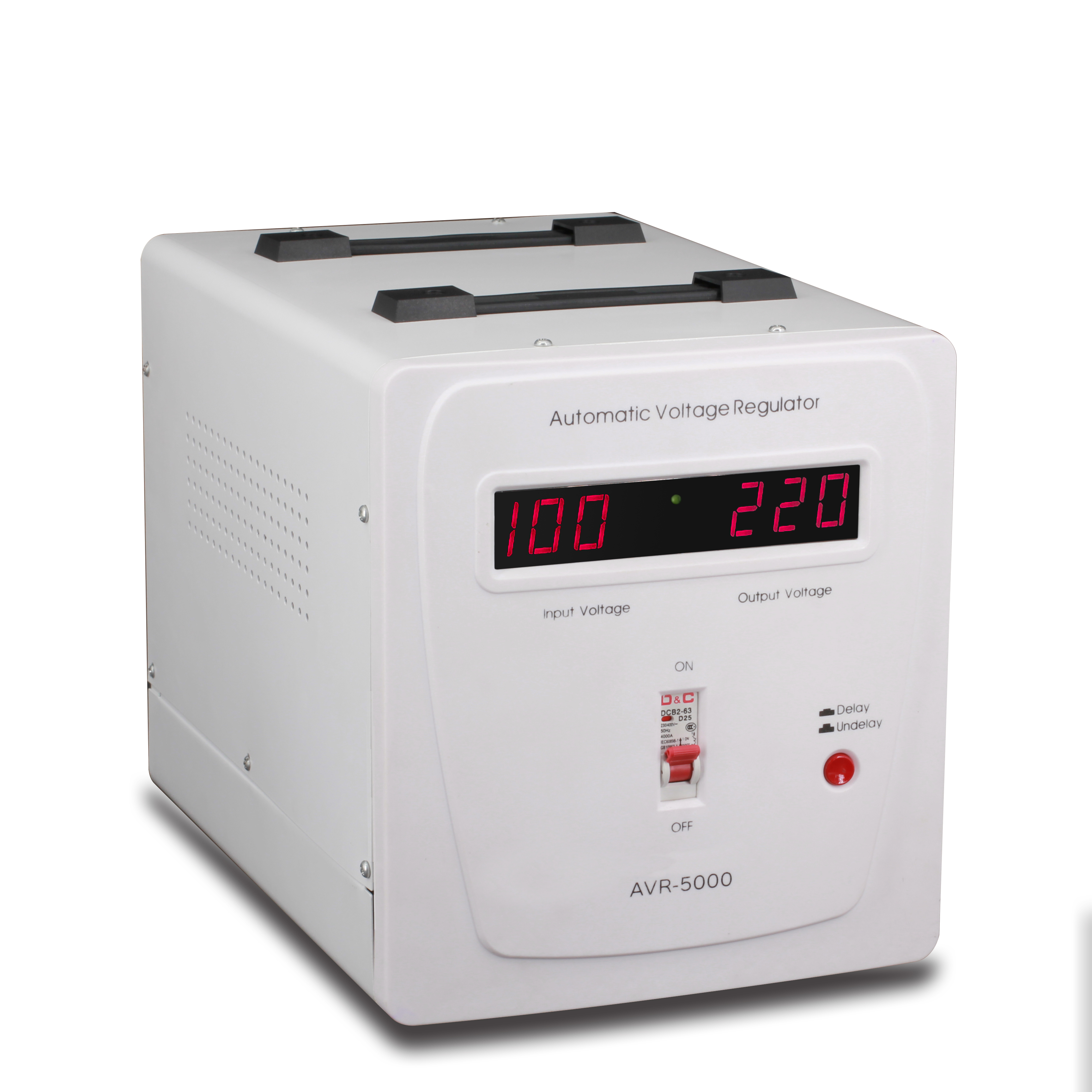

AVS PLUS series Automatic Voltage Stabilizer-SCIENTEK ELECTRICAL

Model	AVS-500Plus	AVS-1000Plus	AVS-1500Plus	AVS-2000Plus	AVS-3000Plus	AVS-5000Plus	AVS-8000Plus	AVS-10000Plus
Nominal Power	500VA	1000VA	1500VA	2000VA	3000VA	5000VA	8000VA	10000VA
Rated Power	300W	600W	900W	1200W	1800W	3000W	4800W	6000W
Power Factor	0.6~1.0
Input
Regulation Voltage Range	100~270VAC
Connection Type	Power cord with plug				Input terminal block
Output
Output Voltage Range	180~255VAC
High Cut Voltage	255V	255V	255V	255V	255V	255V	255V	255V
Low Cut Voltage	180V	180V	180V	180V	180V	180V	180V	180V
Frequency	50/60Hz Auto Sense
Safety Cycle	6 Seconds / 180 Seconds Selectable

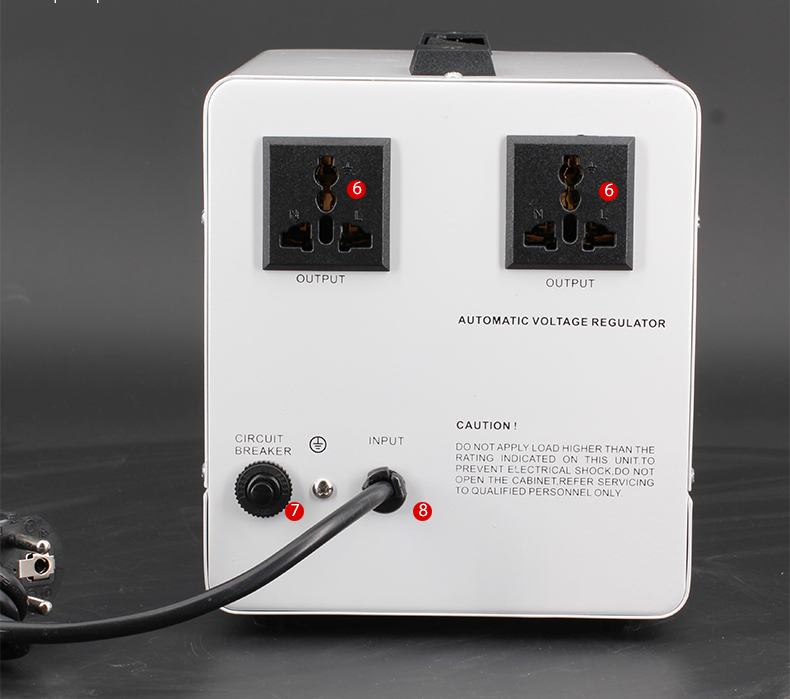

Connection Type	Output sockets				Output terminal block
Regulation
Regulation %	± 8% (when input 100~270VAC)
Number of Taps	7 taps

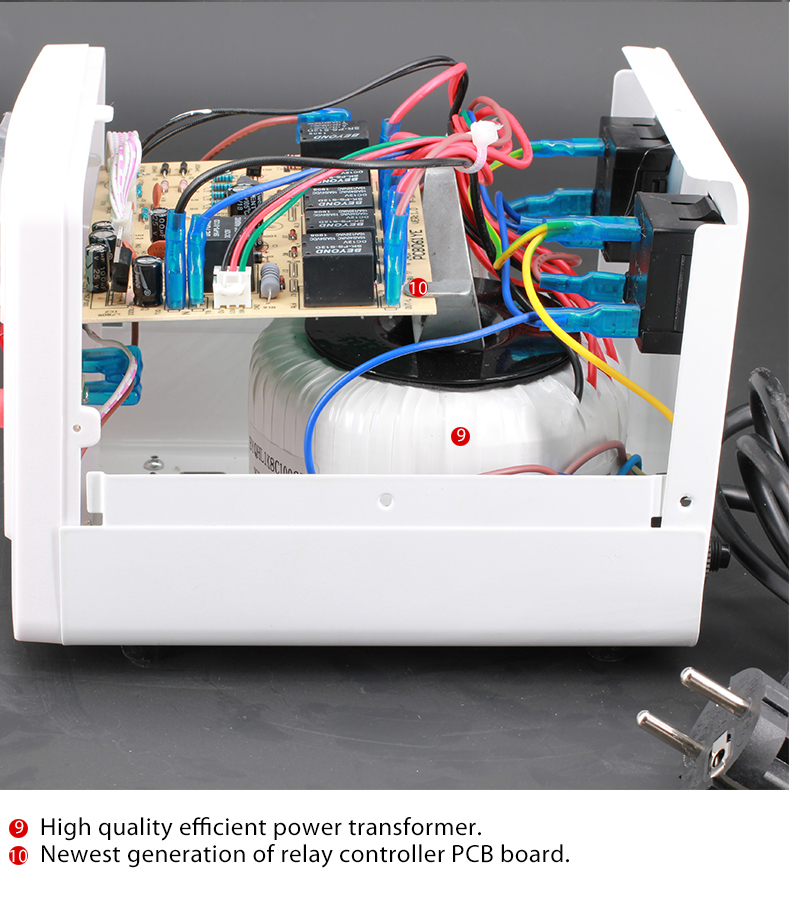

Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators

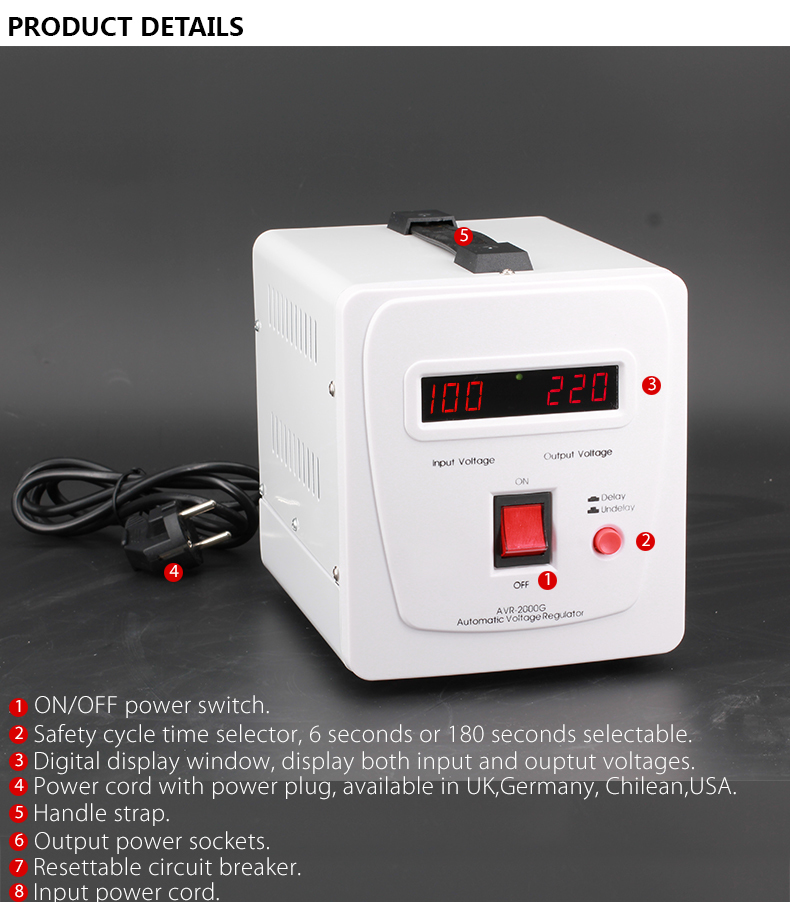

LED indicators	POWER: Green LED ON, Delaying: Yellow LED ON, Fault / Protection: Red LED ON
Voltage Meter	1 input & 1 output LED volt meter
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Breaker / Fuse	5A	7A	10A	12A	16A	25A	40A	50A
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	210x155x155(mm)		210x155x190(mm)		330x225x265(mm)		405x260x310(mm)
Net weight	2.3kgs	3.3kgs	4.0kgs	4.9kgs	6.8kgs	8.6kgs	13.5kgs	15.5kgs

24 months warranty

AVS PLUS series Automatic Voltage Stabilizer
