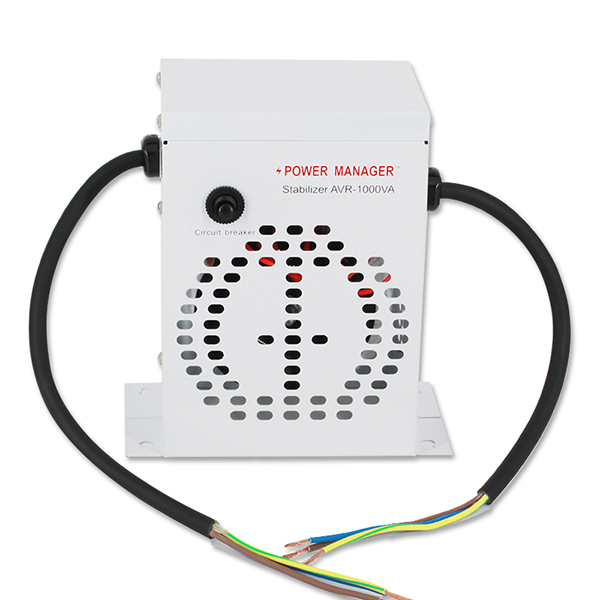

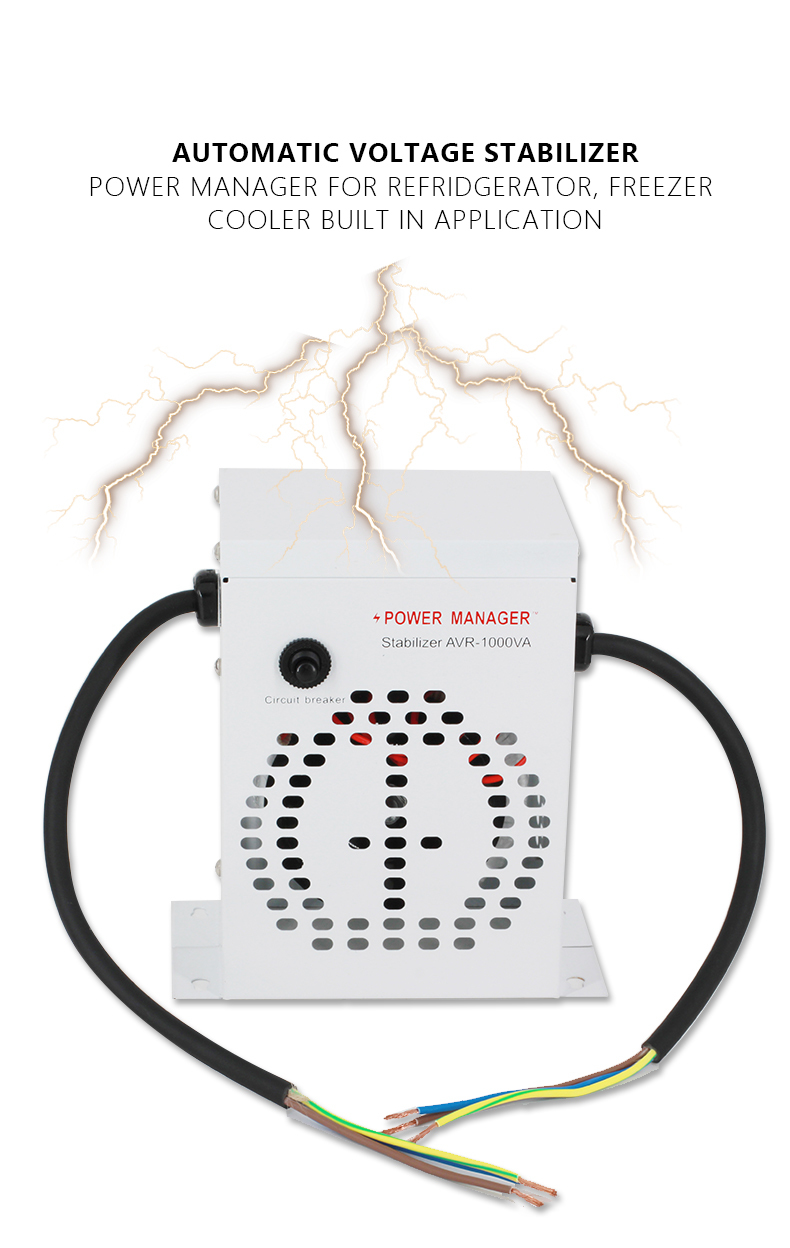

1000VA Automatic voltage regulator for refridgerator freezer cooler-SCIENTEK ELECTRICAL

Model	AVR-1000F
Nominal Power	1000VA 600W
Rated Power
Power Factor	0.6~1.0
Input
Regulation Voltage Range	130~270VAC
Connection Type	50CM 3 x1.5mm2 cable with stripped 15mm leads
Output
Output Voltage Range	180~250VAC
High Cut Voltage	250V
Low Cut Voltage	180V
Frequency	50/60Hz Auto Sense
Safety Cycle	120 Seconds Delay Cycle
Connection Type	50CM 3 x1.5mm2 cable with stripped 15mm leads
Regulation
Regulation %	± 8% (when input 130~270VAC)
Number of Taps	5 taps
Transformer Type	Toroidal auto transformer
Regulation Type	CPU Controlled Relay type
Indicators
LED indicators	N/A
Voltage Meter	Optional (by Default no display)
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Breaker / Fuse	7A
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Physical
Dimension	160mmX95mmX175mm
Net weight	2.65Kgs

1000VA Automatic voltage regulator for refridgerator freezer cooler
