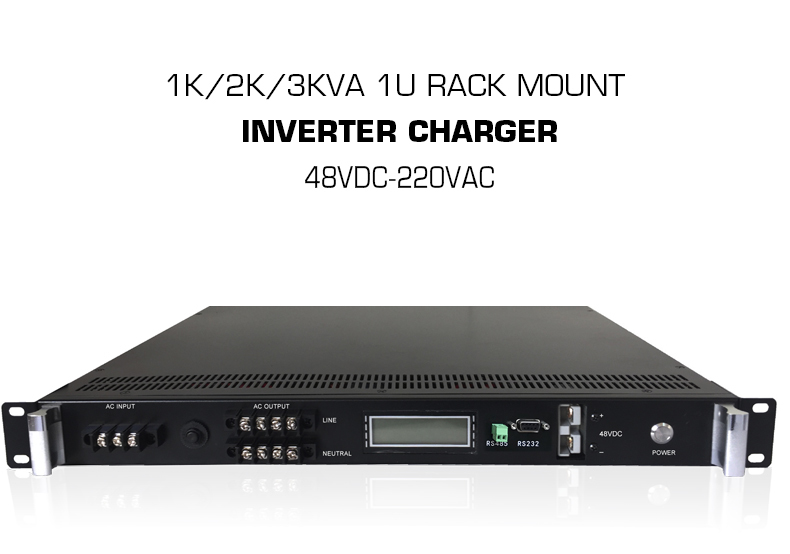

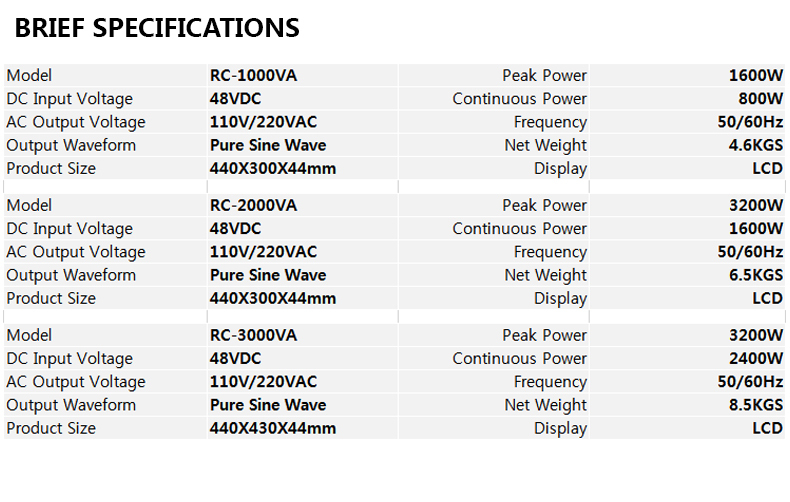

| MODEL | RC-1000VA | RC-2000VA | RC-3000VA | RC-4000VA | RC-5000VA | RC-6000VA |
| Power capacity | 1000VA | 2000VA | 3000VA | 4000VA | 5000VA | 6000VA |
| DC input |
| Input voltage | 48VDC |
| Input voltage range | 40-60VDC |
| Idle Current(@12V) | 0.20A | 0.4A | 0.4A | 0.6A | 0.8A | 0.8A |
| Efficiency | >95% |
| Input connector | Terminal block |
| AC input |
| Input voltage | 110V/120VAC/220VAC/230VAC(factory set) ±25% |
| Input frequency | 50/60Hz Auto sensing, Acceptable frequency range :47Hz-65Hz |
| Input Fuse | resettable circuit breaker | Circuit Breaker |
| Charger | Smart multi-stage pulse charger 55V/5A,charge voltage adjustable for different batteries. |
| AC output |
| Output voltage | 110V/120VAC/220VAC/230VAC(factory set) ±5% |
| Rated power | 800W | 1600W | 2400W | 3200W | 4000W | 4800W |
| Output wave | Pure Sine Wave |
| THD | Total harmonic distortion ≤3% |
| Output frequency | 50/60 Hz±0.2% (Factory preset) |

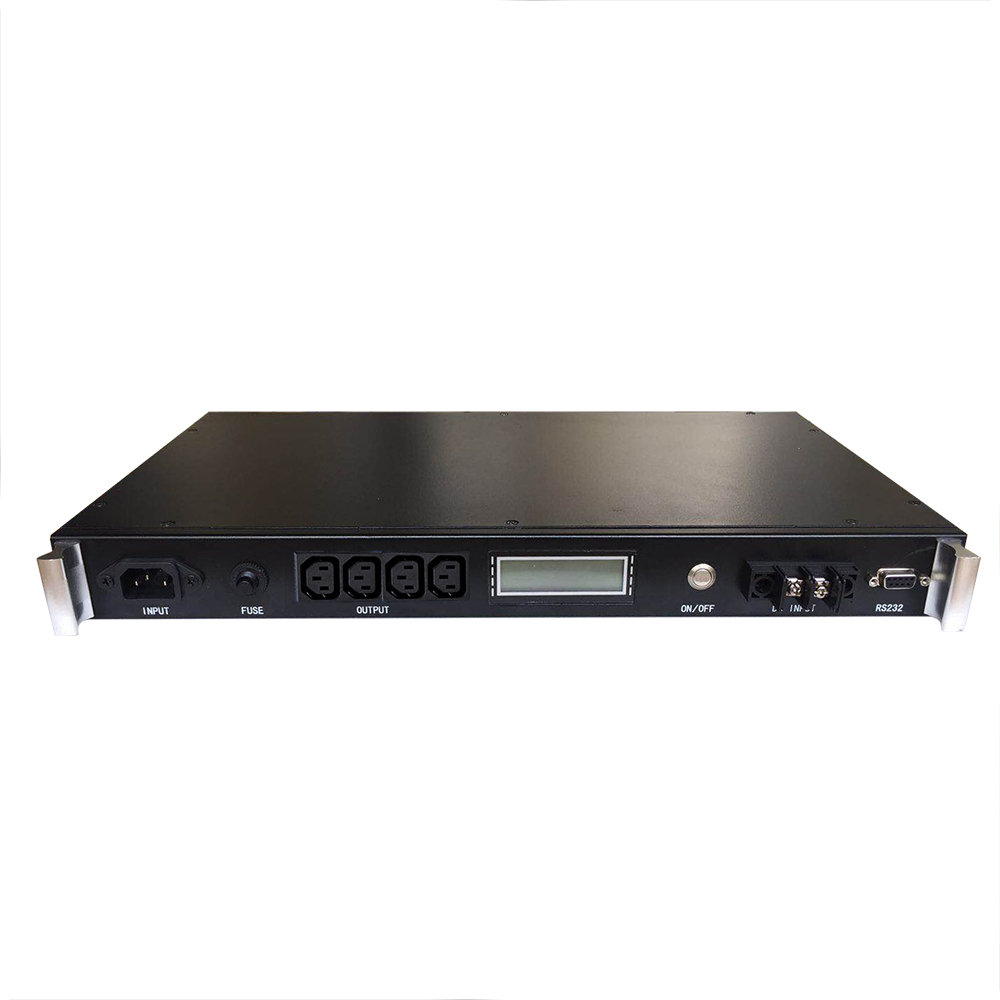

| Output receptacle | IEC socket/ terminal block |
| Protection |
| Battery voltage protection | Under voltage protection: 40.0V | over voltage protection: 60.0V |
| Overload | Yes, CPU controlled auto shut down |
| Short circuit | Yes,Circuit breaker trip off. |
| Over heat | Yes, CPU controlled auto shut down |
| Audible Alarm | input DC under,over voltage, fault, overload, overheat |
| Cooling | intelligent cooling fan |

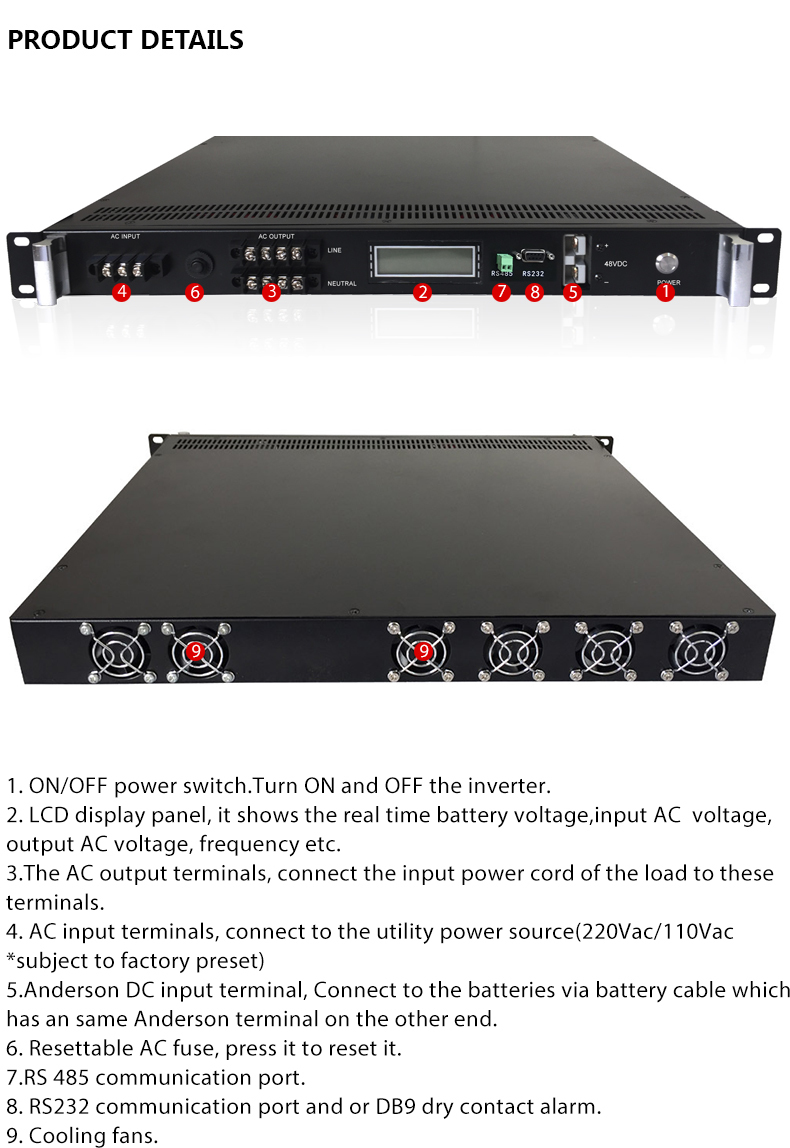

| Displayer and indicators | LCD display shows input voltage, output voltage, frequency, and protection alarm. |
| Communication | RS232 compactible with Upsilon 2000 monitoring software | RS232-SNMP network card | RS485 | DB9 dry contact alarm. |
| Physical |
|
|
|

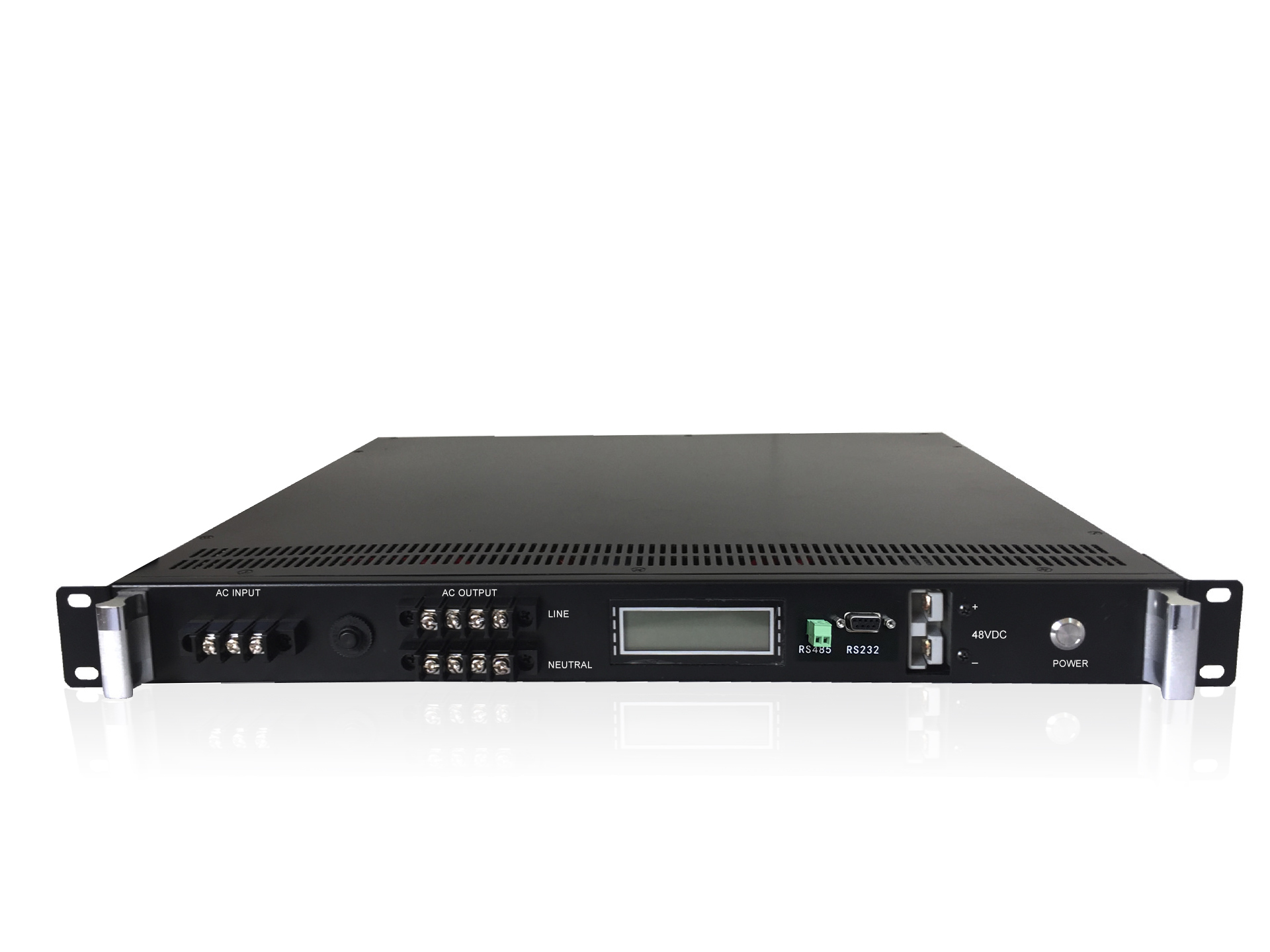

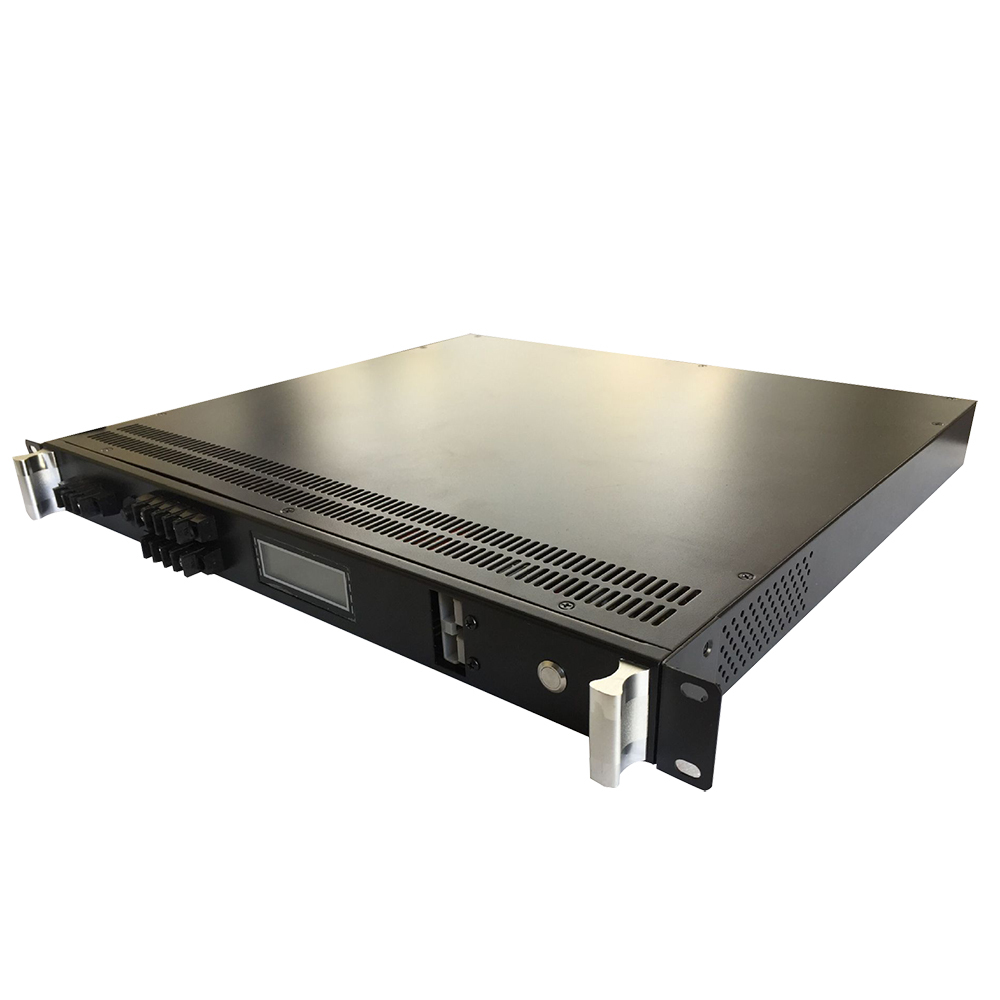

| Case | metal 19" Rack mount 1U | metal 19" Rack mount 2U |
| Dimensions(mm) | 440X300X44 | 440X300X44 | 440X430X44 | 440X430X88 | 440X430X88 | 440X520X88 |
| Net Weight | 4.6KGS | 6.5KGS | 8.5KGS | 12KGS | 13KGS | 15KGS |
| Working temperature | -20℃~+50℃ |
