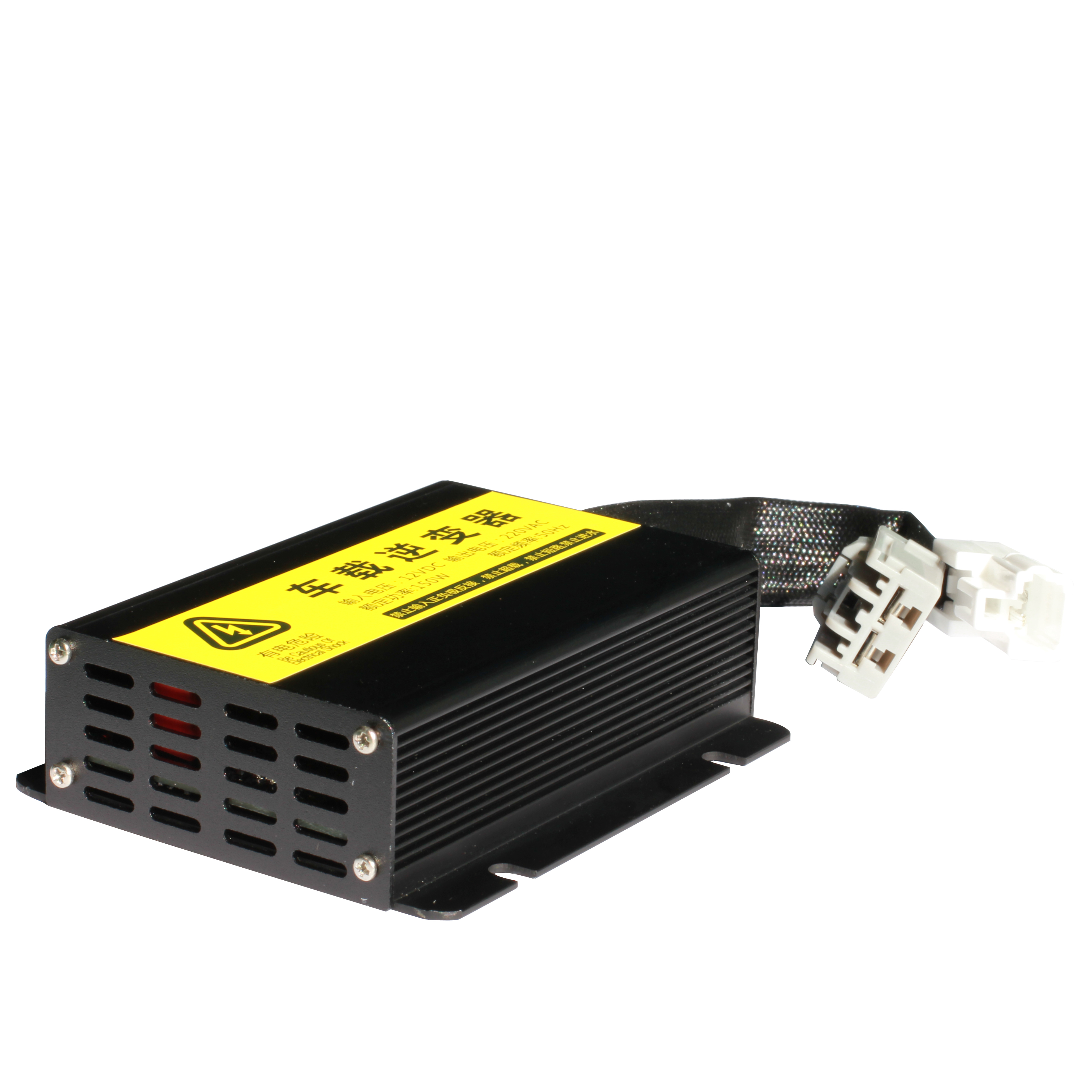

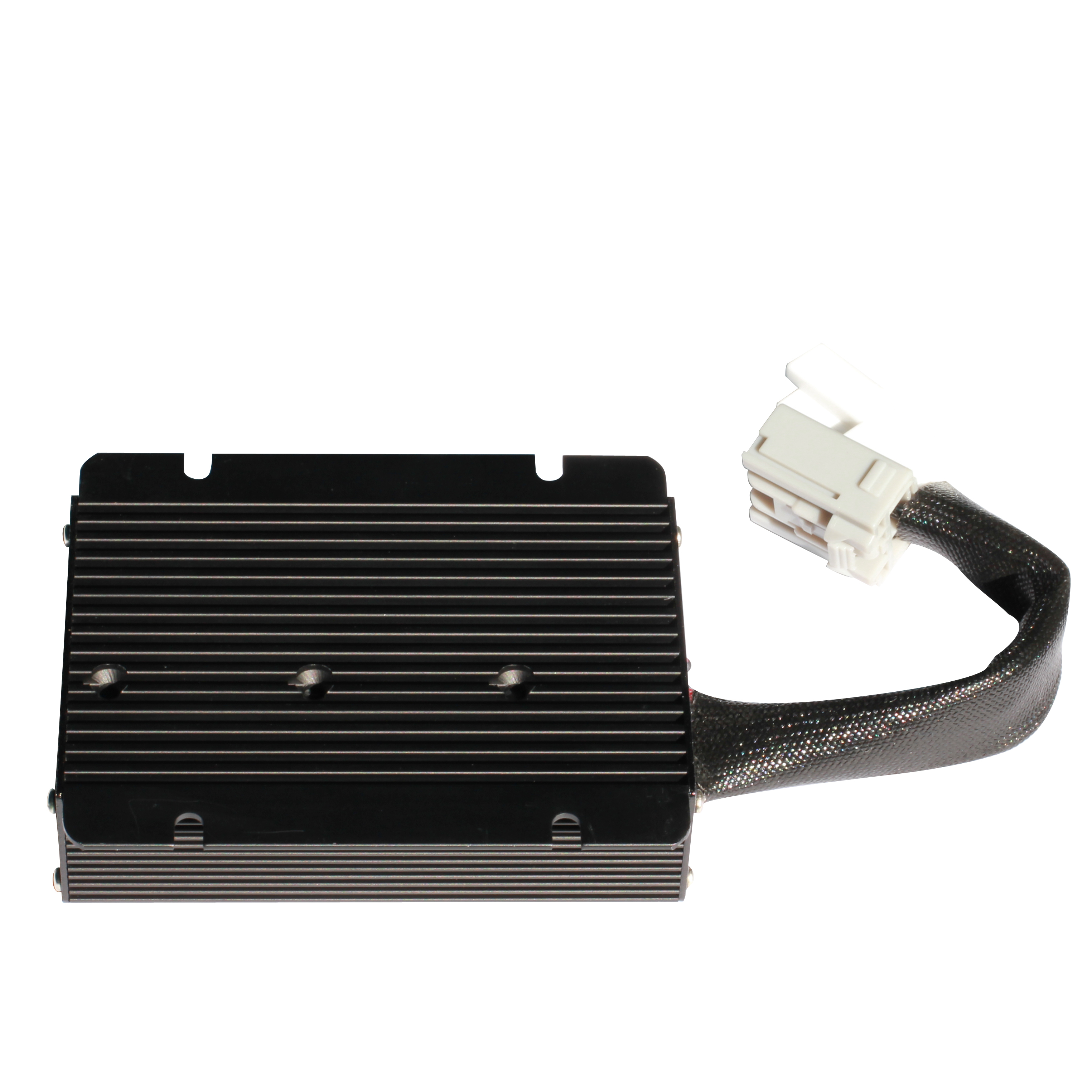

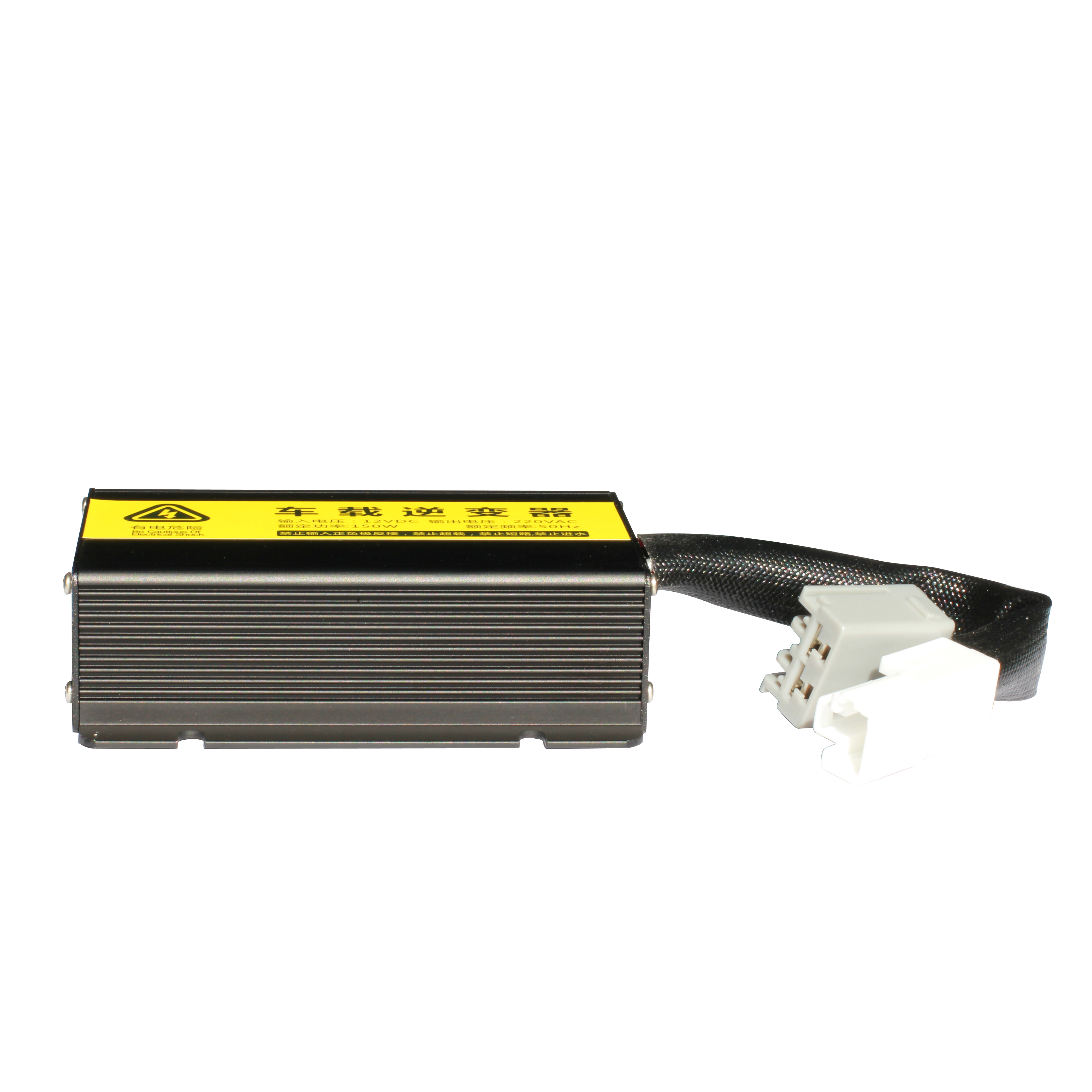

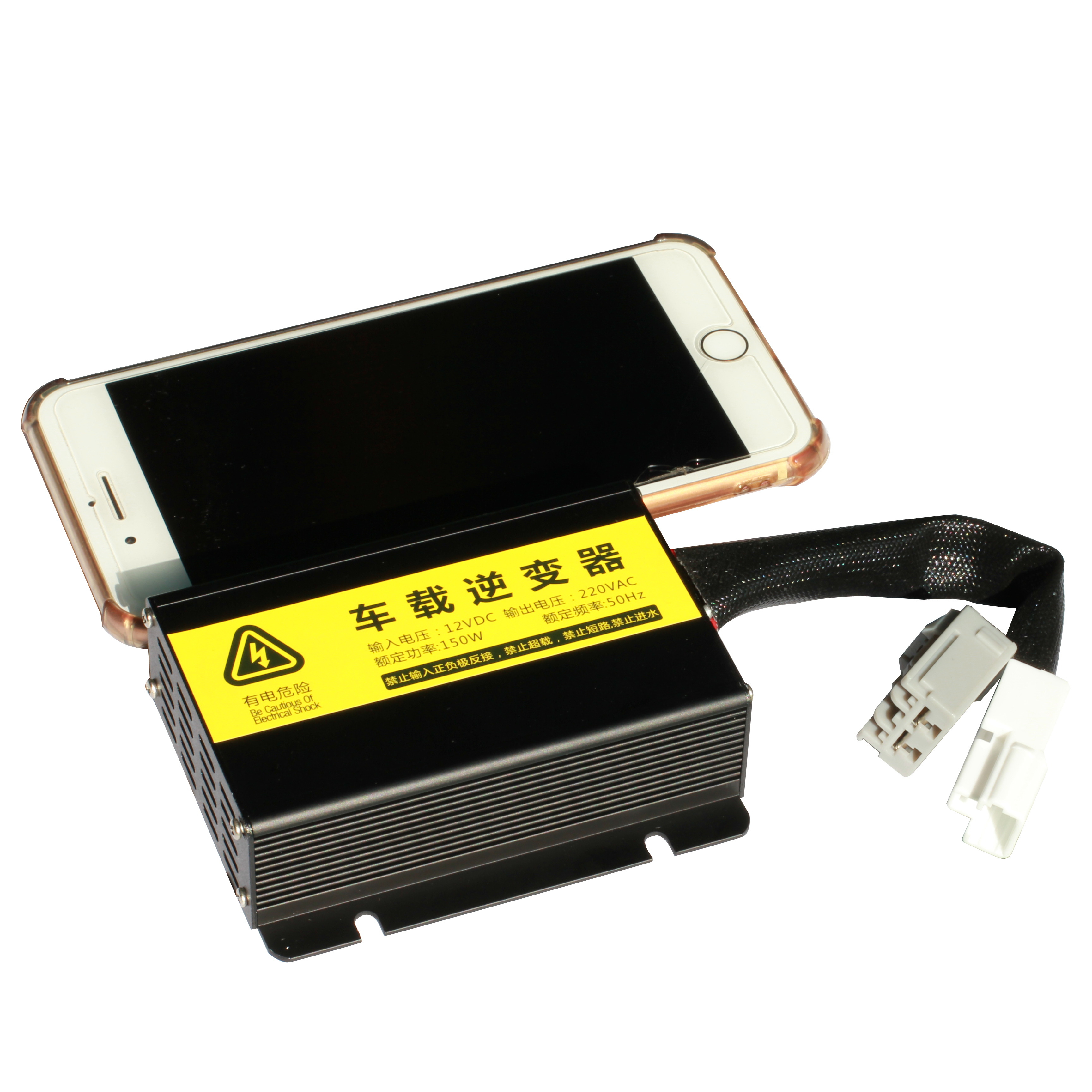

Customized 150W power inverter for car refitting with customized connectors-SCIENTEK ELECTRICAL

MODEL	PI-150W	PI-150C
power capacity	150VA	150VA
DC input
input voltage	12VDC
input voltage range	10-15.6V
Idle Current(@12V)	0.1A	0.1
Efficiency	>90%	>90%

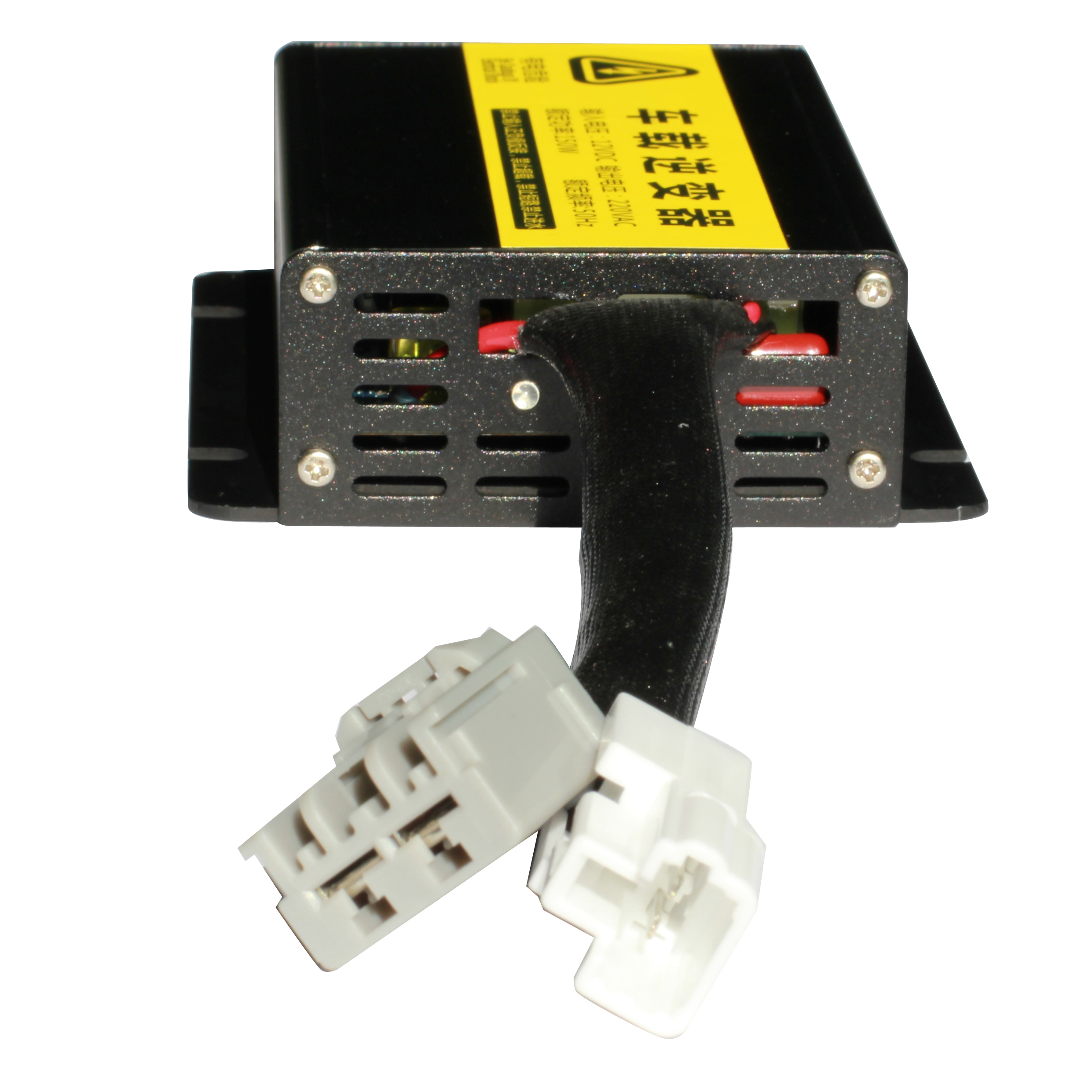

Input connector	cigarette plug	Customized vehicle connector
AC output
Output voltage	110V or 220VAC(factory set)
Output voltage range	110V or 220VAC±10%
continuous power	150W	150W
surge power	300W	300W
output wave	Modified Sine Wave
output frequency	50/60Hz

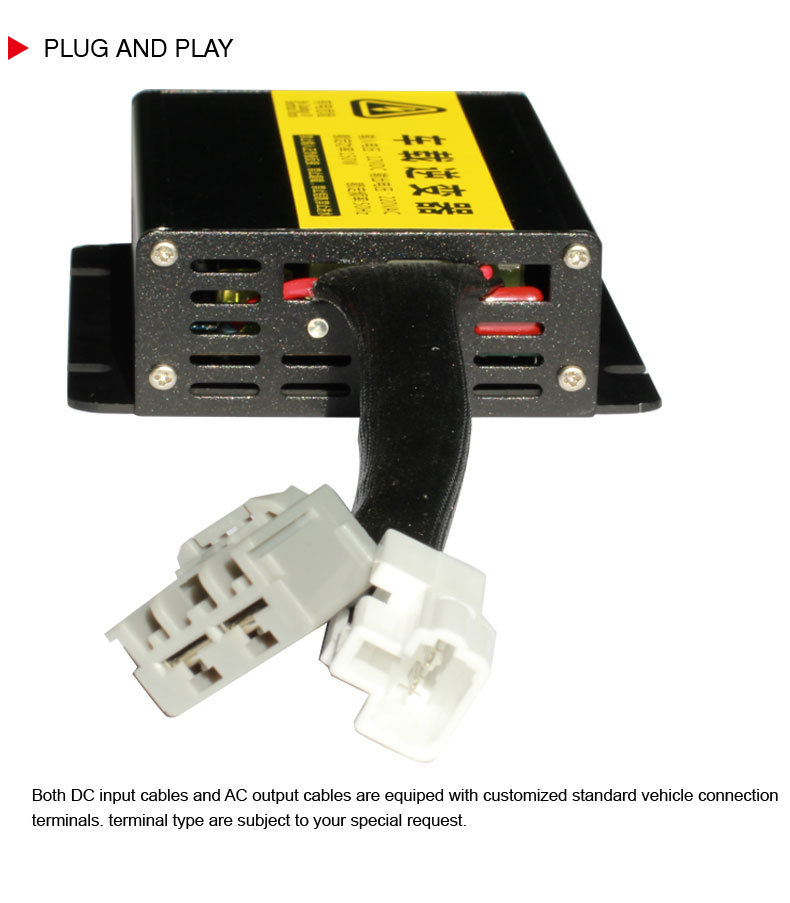

output receptacle	2 pin Socket	Customized vehicle connector
USB output
USB charger	Max 18W 5V/3.4A Support DCP/QC2.0/QC3.0/FCP/AFC/SFCP/MTK/SCP	N/A
Protection
input DC under voltage	8.6V±0.1VDC
input DC over voltage	15.8V±0.2VDC
overload	auto shut down,auto restart.
DC polarity reverse	fuse protection
short circuit	auto shut down,auto restart.
over heat	auto shut down,auto restart.

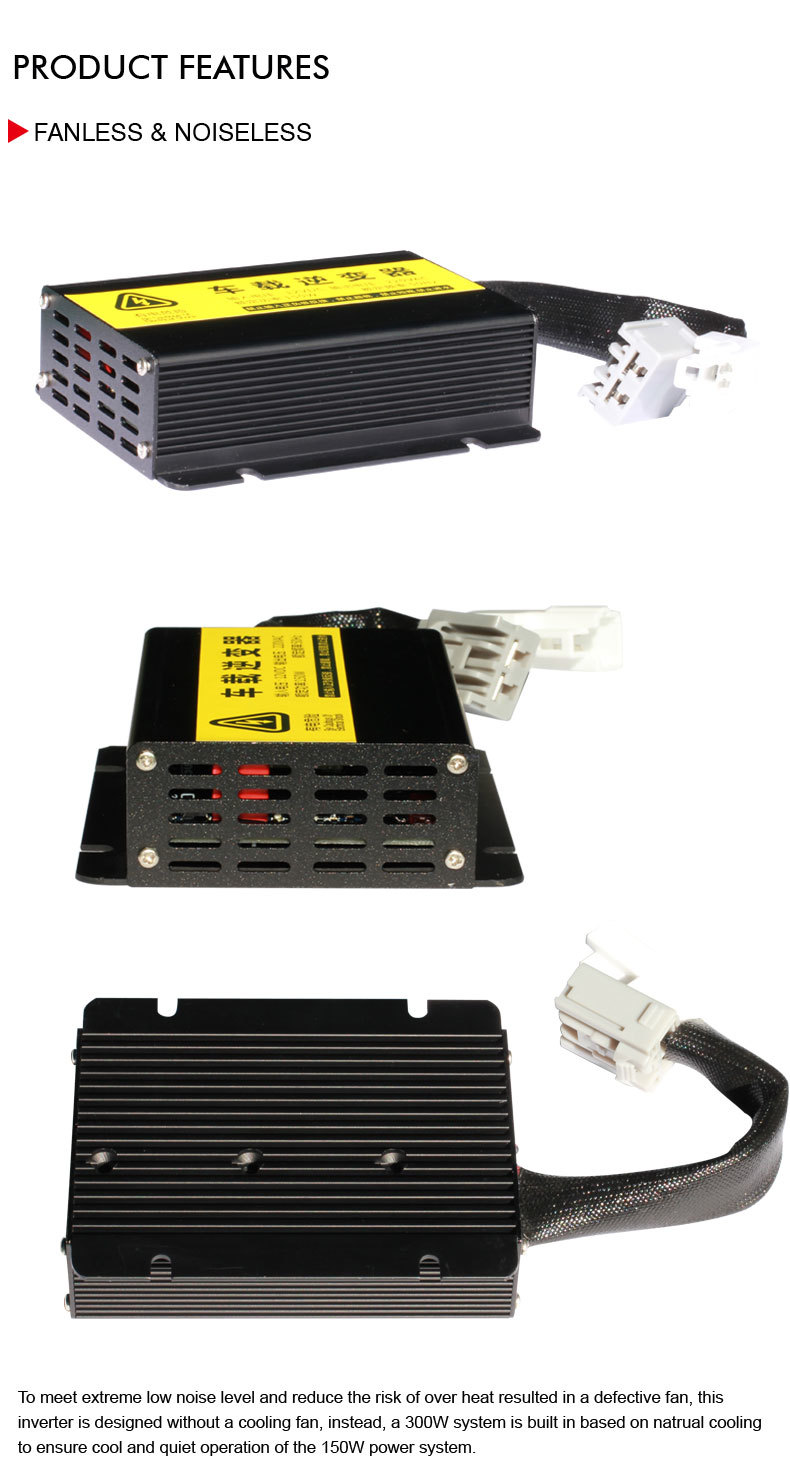

Cooling	Natural cooling
Display & Indicator
Indicator	LED indicator, Green LED glow if the device works properly, Red LED glow if the device is faulty or entering into protection mode.
Physical
Case	anodized aluminum

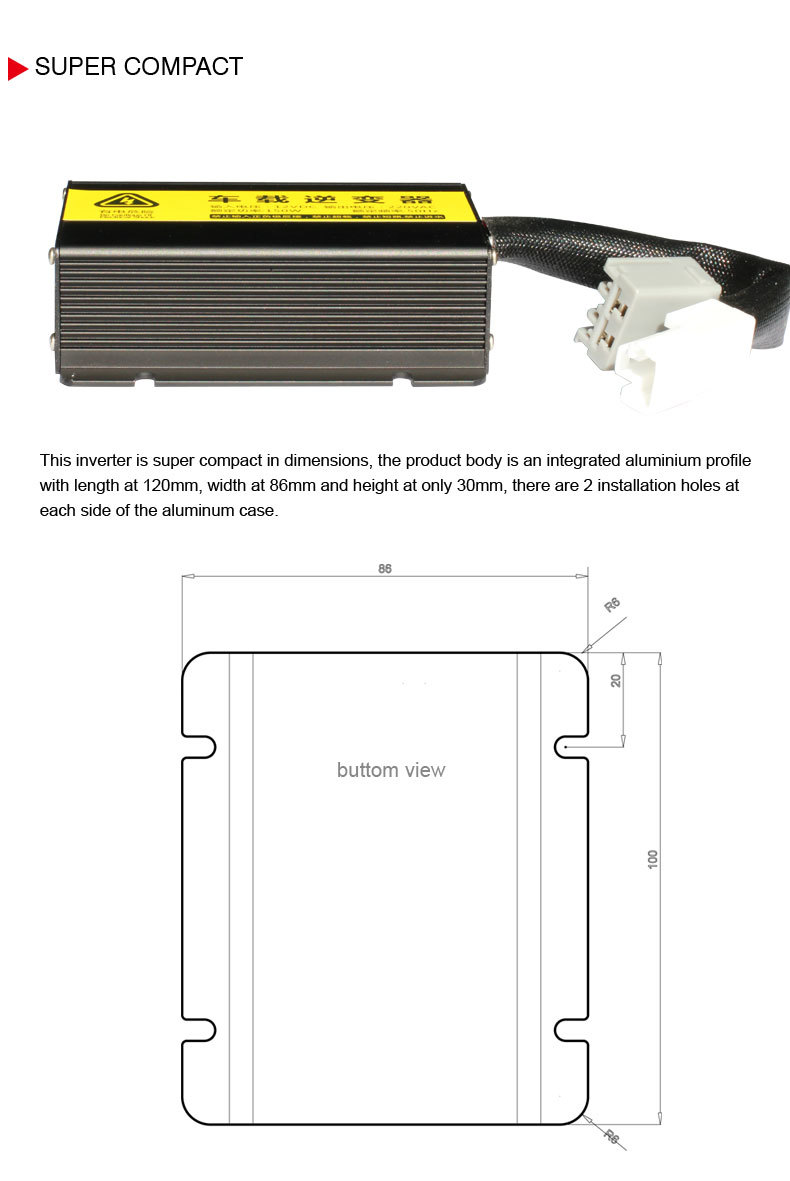

Dimensions(LXWXH)mm	103mm×70mm×31mm	103mm×86mm×31mm
Net Weight(kgs)	0.3kgs	0.35kgs

Customized 150W power inverter for car refitting with customized connectors
