| MODEL | PS-2000PRO | PS-2000PRO-RC | PS-3000PRO | PS-3000PRO-RC |
| Power capacity | 2000VA | 2000VA | 3000VA | 3000VA |
| DC input |
| Input voltage | 12VDC/24VDC/48VDC(factory set) |
| Input voltage range | 9-15VDC(for 12V standard) |
| Idle Current(@12V) | 0.20A | 0.20A | 0.3A | 0.3A |
| Efficiency | >95% |

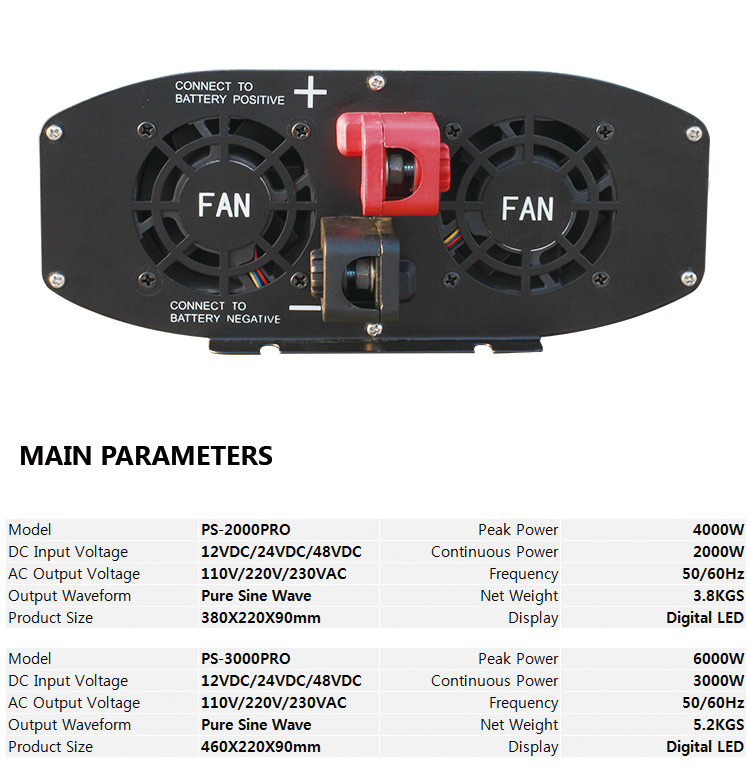

| Input connector | Red and black DC input terminals |
| AC output |
| Output voltage | 110V/120VAC/220VAC/230VAC(factory set) ±5% |
| Continuous power | 2000W | 2000W | 3000W | 3000W |
| Surge power | 4000W | 4000W | 6000W | 6000W |

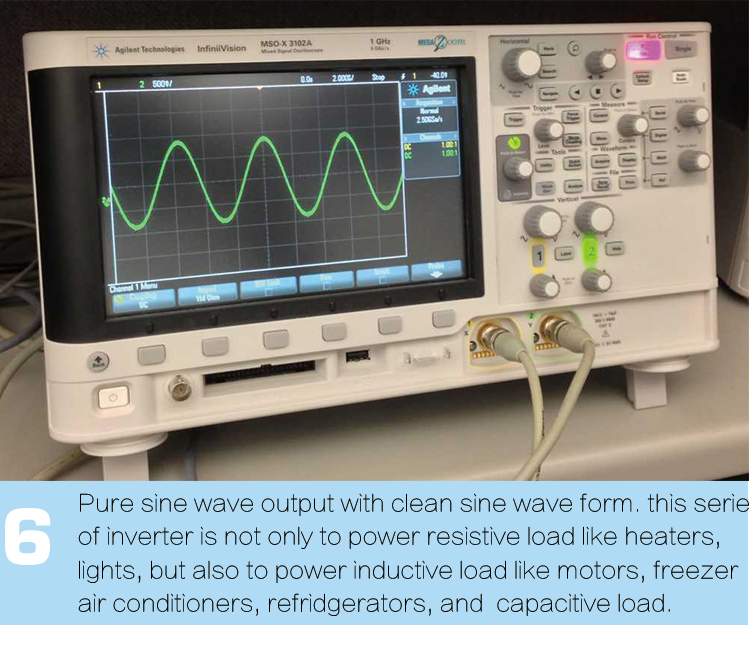

| Output wave | Pure Sine Wave |
| THD | Total harmonic distortion ≤3% |
| Output frequency | 50/60 Hz±0.2% (Factory preset) |
| Output receptacle | Universal Socket /German type/ Austrlia type |
| Isolation strength | ≧1500Vac/1min, Between input and output and the casing |

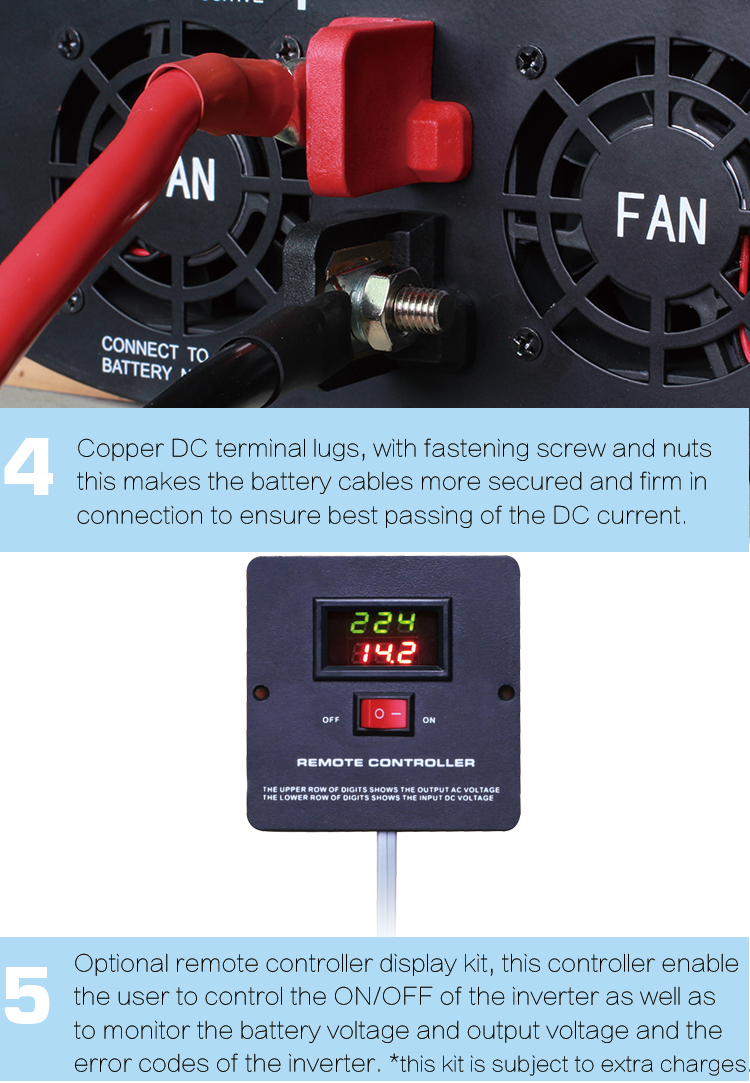

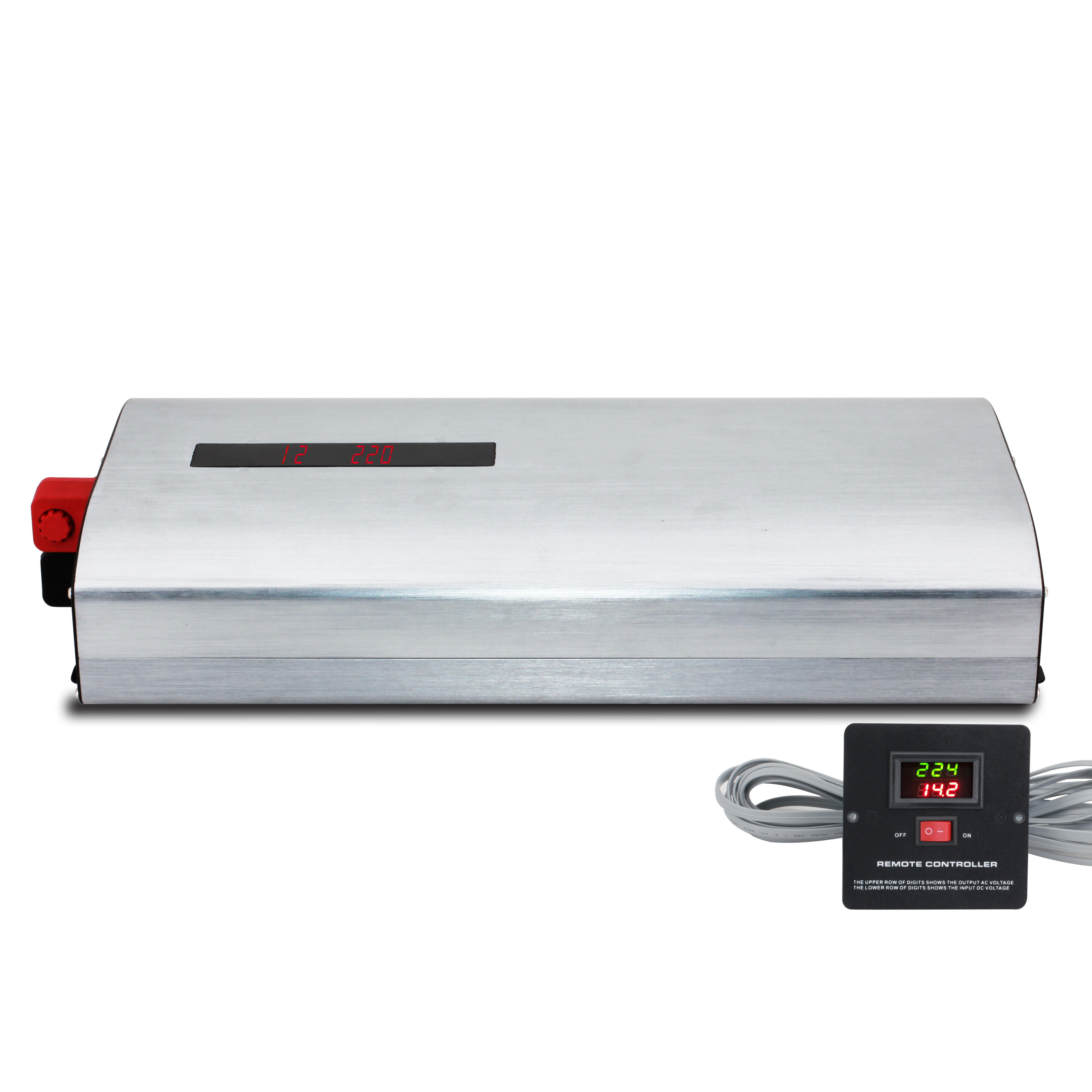

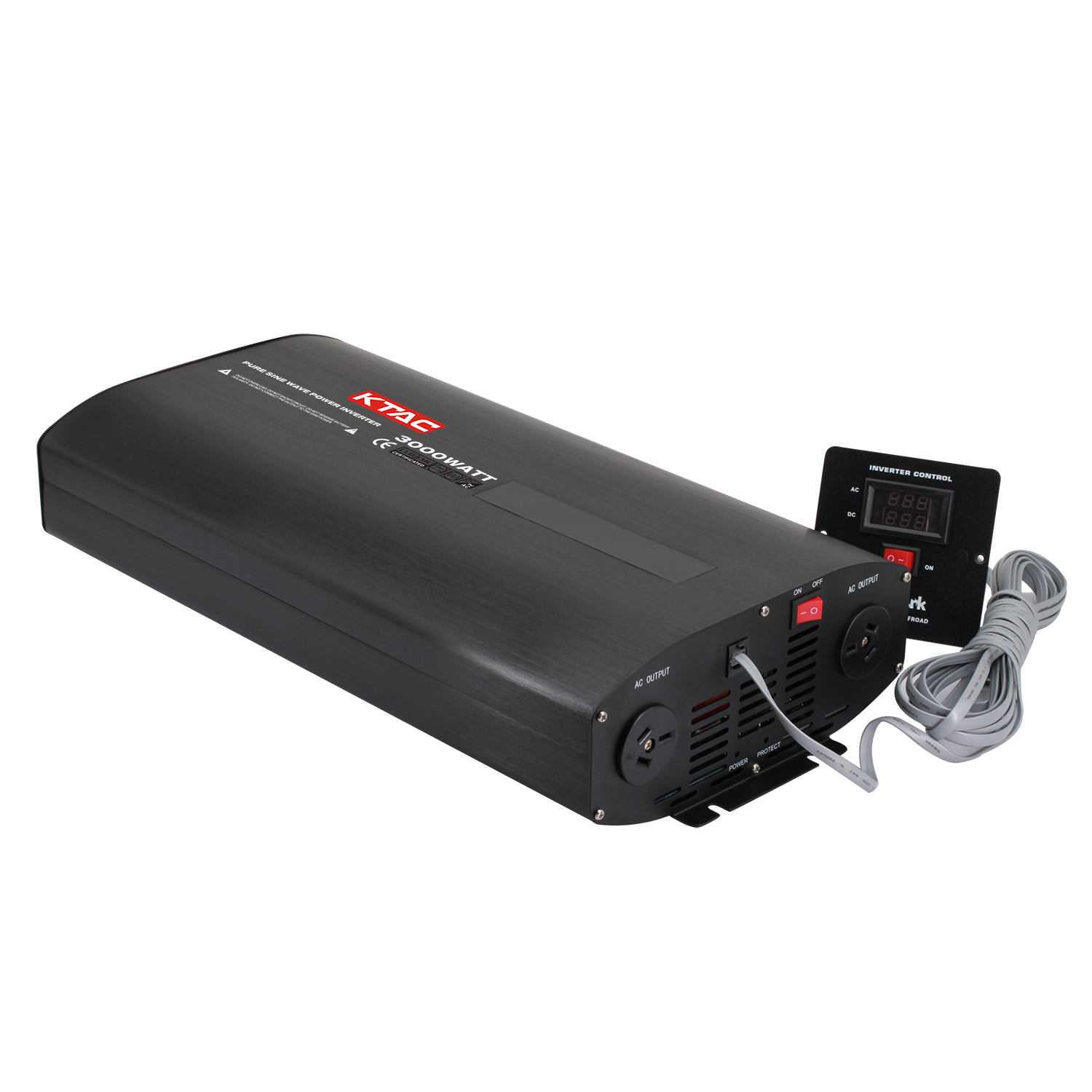

| Remote Controller | N/A | YES | N/A | YES |
| Protection |
| DC under voltage protection | 12V models: 9.0 V | 24V models: 18.0V | 48V models: 36.0V |
| DC over voltage protection | 12V models: 15.0V | 24V models: 30.0V | 48V models: 60.0V |
| Overload | Error code E1, CPU controlled auto shut down |
| DC polarity reverse | CPU controlled auto shut down |
| Short circuit | Error code E11,CPU controlled auto shut down |
| Over heat | Error code E3,CPU controlled auto shut down |
| Audible Alarm | input DC under,over voltage, fault, overload, overheat |

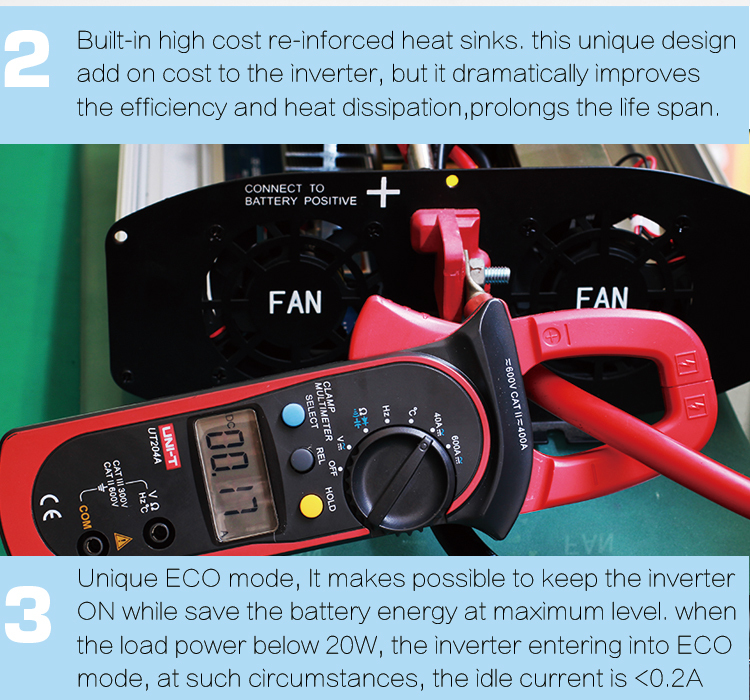

| Cooling | intelligent cooling fan |
| Display & Indicator |
| Indicator | LED indicator,Green LED glow if the device works properly,
Red LED glow if the device is faulty or entering into protection mode. |
| Displayer | Display input and output voltages |
| Physical |
|
| Case | high quality anodized aluminum |
| Dimensions(mm) | 400X220X90 | 400X220X90 | 480X220X90 | 480X220X90 |
| Net Weight | 4.2KGS | 4.5KGS | 5.2KGS | 5.5KGS |
| Working temperature | -20℃~+50℃ |
