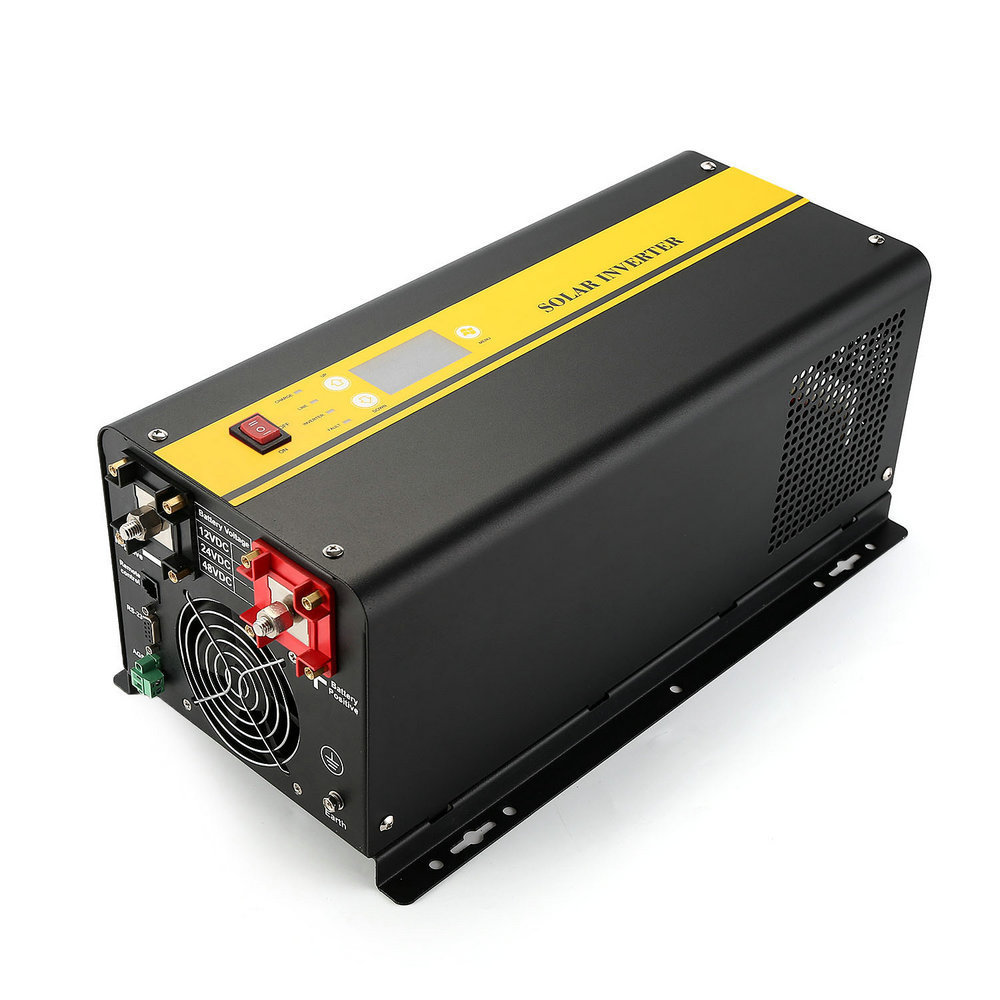

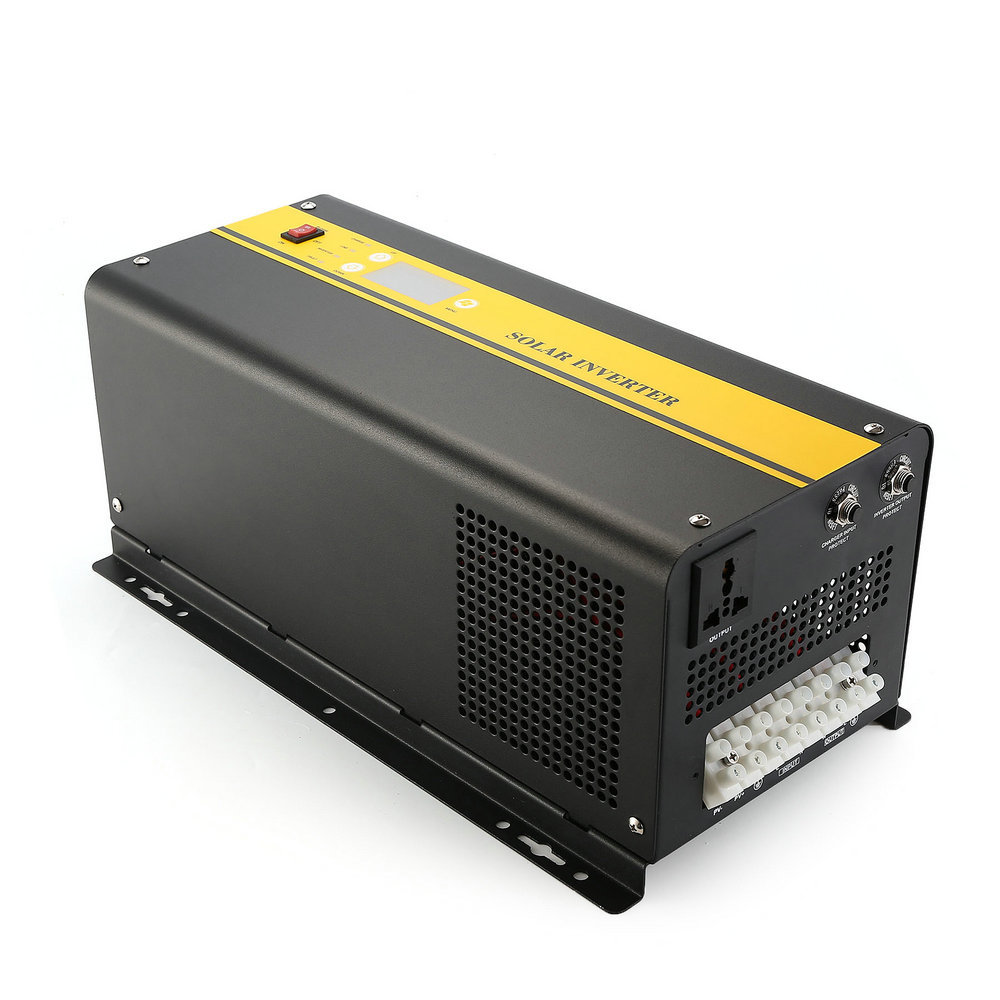

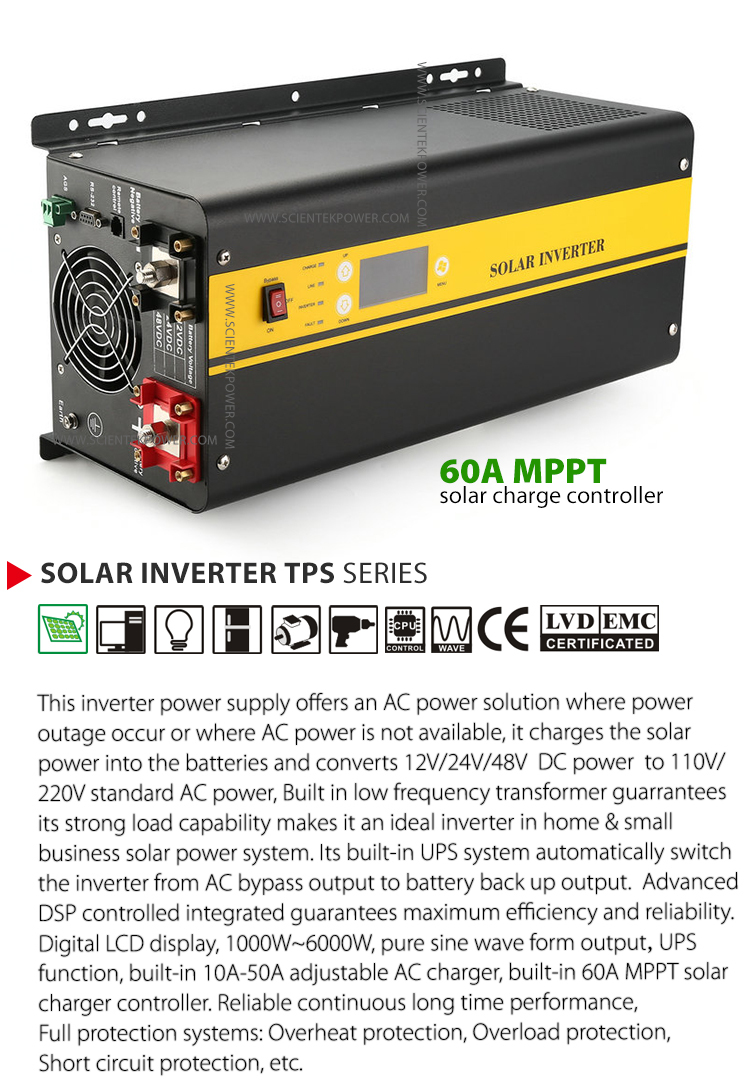

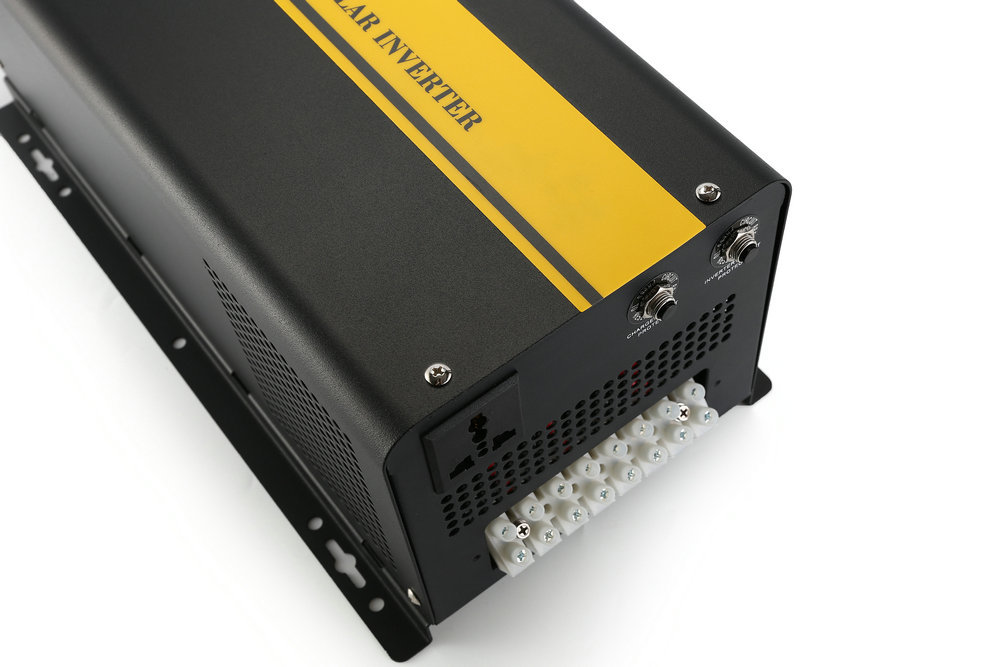

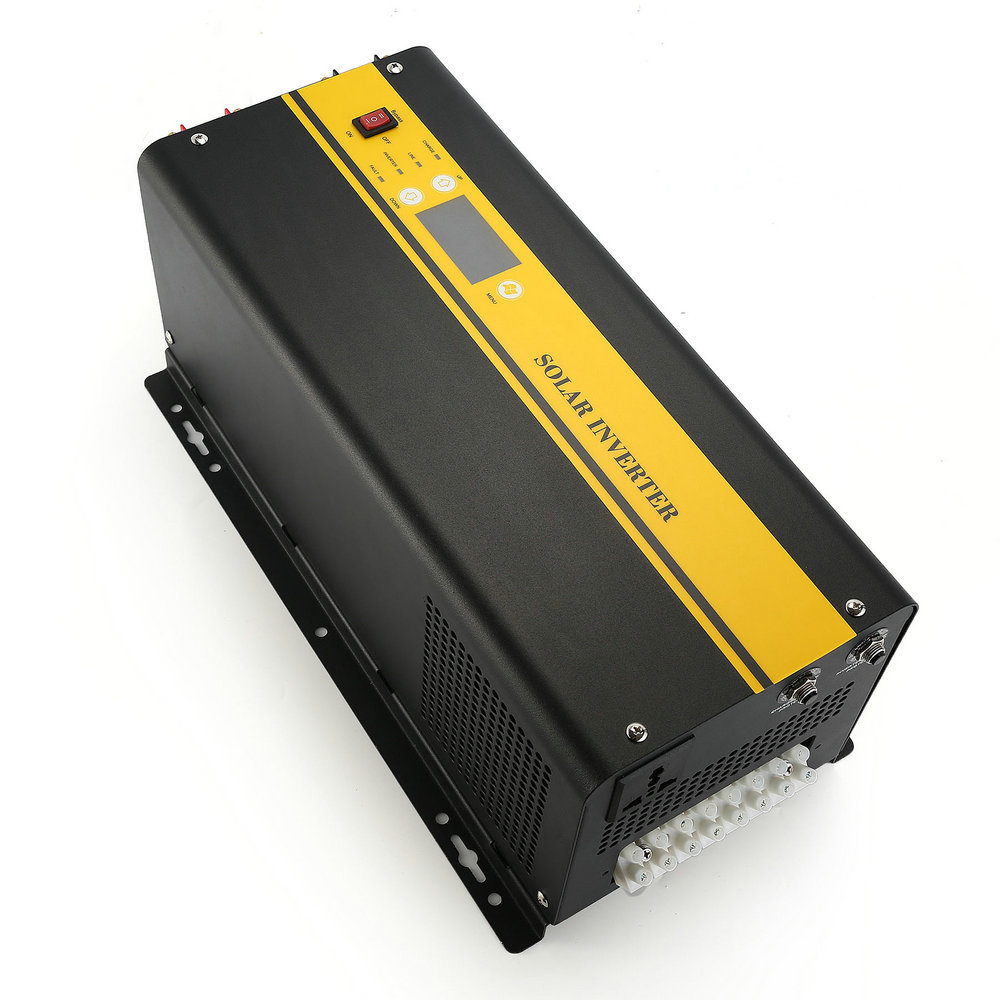

Low frequency DC to AC solar inverter with MPPT charger TPS series-SCIENTEK ELECTRICAL

MODEL	TPS-1000	TPS-2000	TPS-3000	TPS-4000	PS-5000	TPS-6000
Power capacity	1000W	2000W	3000W	4000W	5000W	6000W
AC Mode
Input Wave form	Pure sine wave
Rated Voltage	120VAC / 230VAC （Selectable）
Input Frequency	50HZ / 60HZ (Auto detect or manual set)
Under Frequency Protection	<47HZ(50HZ) / <57HZ(60HZ)
Over Frequency Protection	>53HZ(50HZ) / >63HZ(60HZ)
Output wave form	Same as input(bypass mode)
Overload protection	Circuit Breaker
Short Circuit protection	Circuit Breaker
Efficiency	>95%
Transfer time	<10mS
Inverter Output
Output wave form	Pure sine wave
Continuous power（W）	1000W	2000W	3000W	4000W	5000W	6000W
Surge power（W）	2000W	4000W	6000W	8000W	10000W	12000W
power factor	1.0
Rated output voltage	120VAC / 230VAC (Programmable)
Output voltage precision	±10%
Output frequency precision	50HZ±0.3HZ 60HZ±0.3HZ
Inverter input
Rated input voltage	12V/24V/48VDC
Min. Starting Voltage	10V/20V/40VDC
Low voltage alarm	10.5V/21V/42VDC
Low voltage protection	10V/20V/40VDC
High voltage alarm	16V/32V/64VDC
AC Charger
Charge voltage	Auto-set according to battery type and voltage
Charge current	10A/15A/20A	12.5A/20A/30A	25A/35A	25A/35A	40A/50A	40A/50A
Over-charge voltage	Auto-set according to battery type and voltage
MPPT Solar Charger Controller
MPPT Operation voltage range	15VDC-30VDC / 35VDC-50VDC / 70VDC-100VDC
Maximum open circuit Voltage	150VDC
Maximum charge current	50A
Maximum efficiency	97%
Physical
Dimensions(LXWXH)	455X225X180MM			630X225X180MM
Net weight(kgs)	15.5	20	24.5	27.5	32	37
