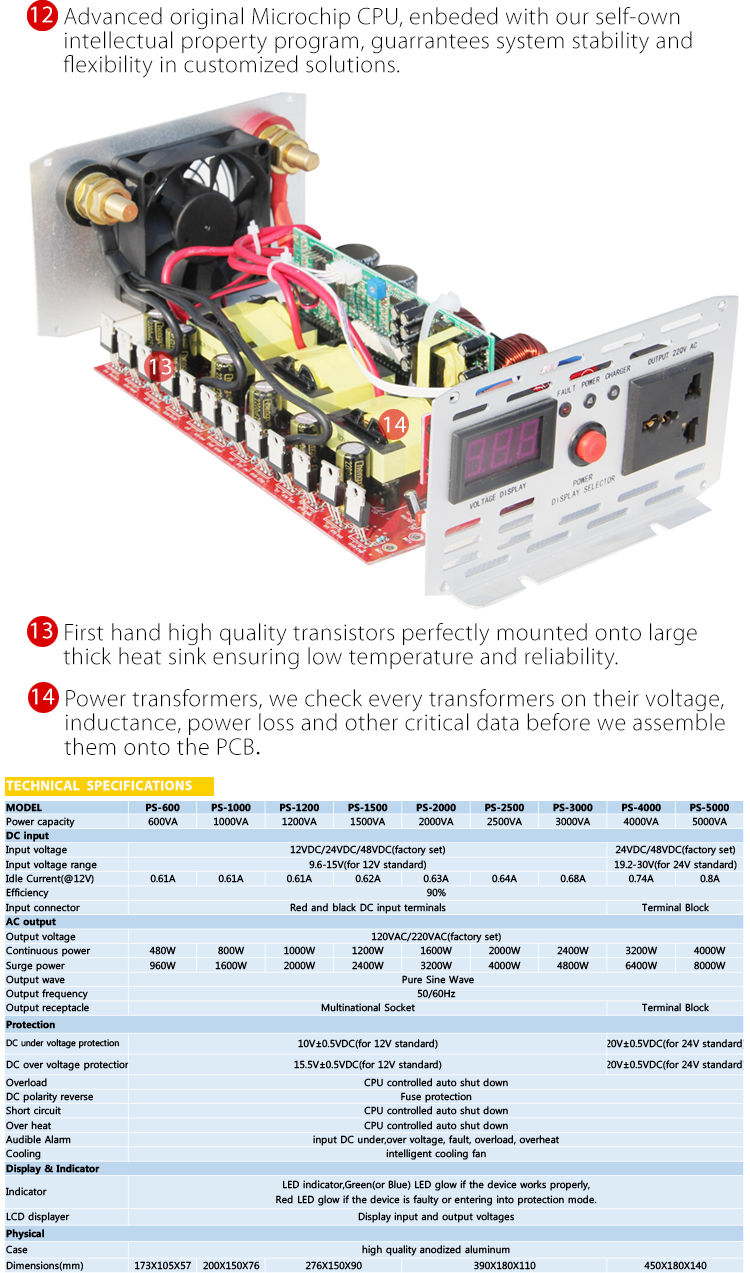

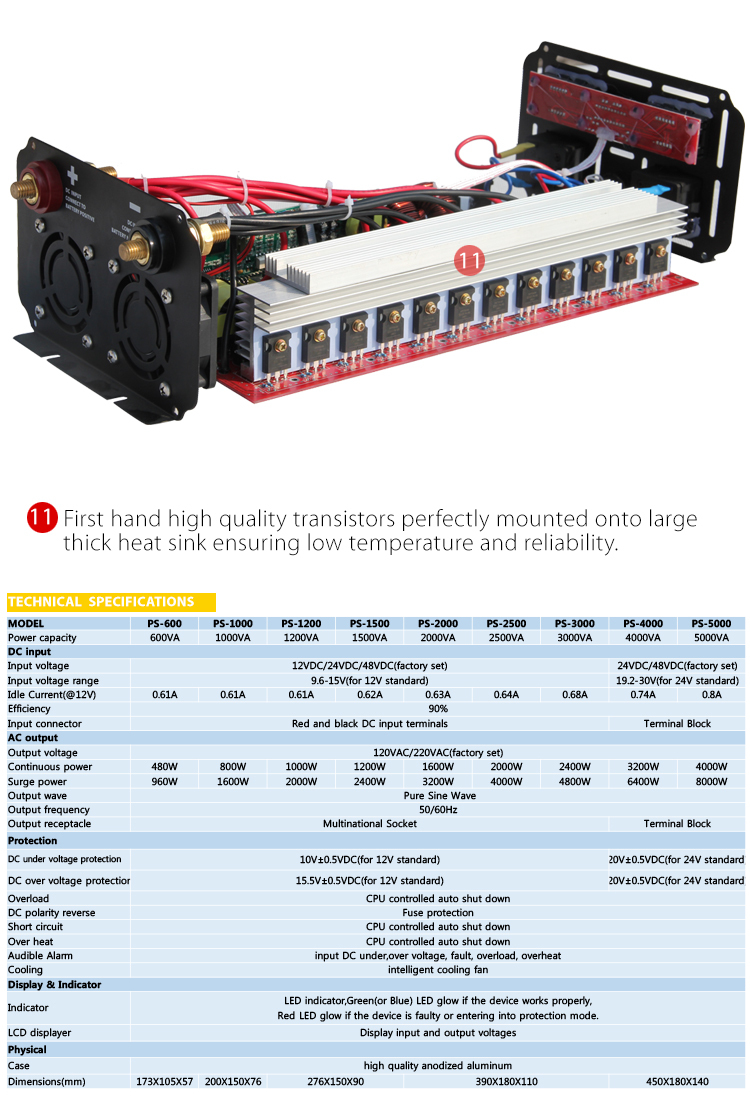

| MODEL | PS-500 | PS-1000 | PS-1200 | PS-1500 | PS-2000 | PS-2500 | PS-3000 | PS-4000 | PS-5000 |
| Power capacity | 500VA | 1000VA | 1200VA | 1500VA | 2000VA | 2500VA | 3000VA | 4000VA | 5000VA |
| DC input |
| Input voltage | 12VDC/24VDC/48VDC(factory set) | 24VDC/48VDC(factory set) |
| Input voltage range | 9.6-15V(for 12V standard) | 19.2-30V(for 24V standard) |
| Idle Current(@12V) | 0.30A | 0.61A | 0.61A | 0.62A | 0.63A | 0.64A | 0.68A | 0.74A | 0.8A |
| Efficiency | 90% |
| Input connector | Red and black DC input terminals | Terminal Block |
| AC output |
| Output voltage | 120VAC/220VAC(factory set) |
| Continuous power | 400W | 800W | 1000W | 1200W | 1600W | 2000W | 2400W | 3200W | 4000W |
| Surge power | 800W | 1600W | 2000W | 2400W | 3200W | 4000W | 4800W | 6400W | 8000W |
| Output wave | Pure Sine Wave |
| Output frequency | 50/60Hz |
| Output receptacle | Multinational Socket | Terminal Block |
| Protection |
| DC under voltage protection | 10V±0.5VDC(for 12V standard) | 20V±0.5VDC(for 24V standard) |
| DC over voltage protection | 15.5V±0.5VDC(for 12V standard) | 20V±0.5VDC(for 24V standard) |
| Overload | CPU controlled auto shut down |
| DC polarity reverse | Fuse protection |
| Short circuit | CPU controlled auto shut down |
| Over heat | CPU controlled auto shut down |
| Audible Alarm | input DC under,over voltage, fault, overload, overheat |
| Cooling | intelligent cooling fan |
| Display & Indicator |
| Indicator | LED indicator,Green(or Blue) LED glow if the device works properly,
Red LED glow if the device is faulty or entering into protection mode. |

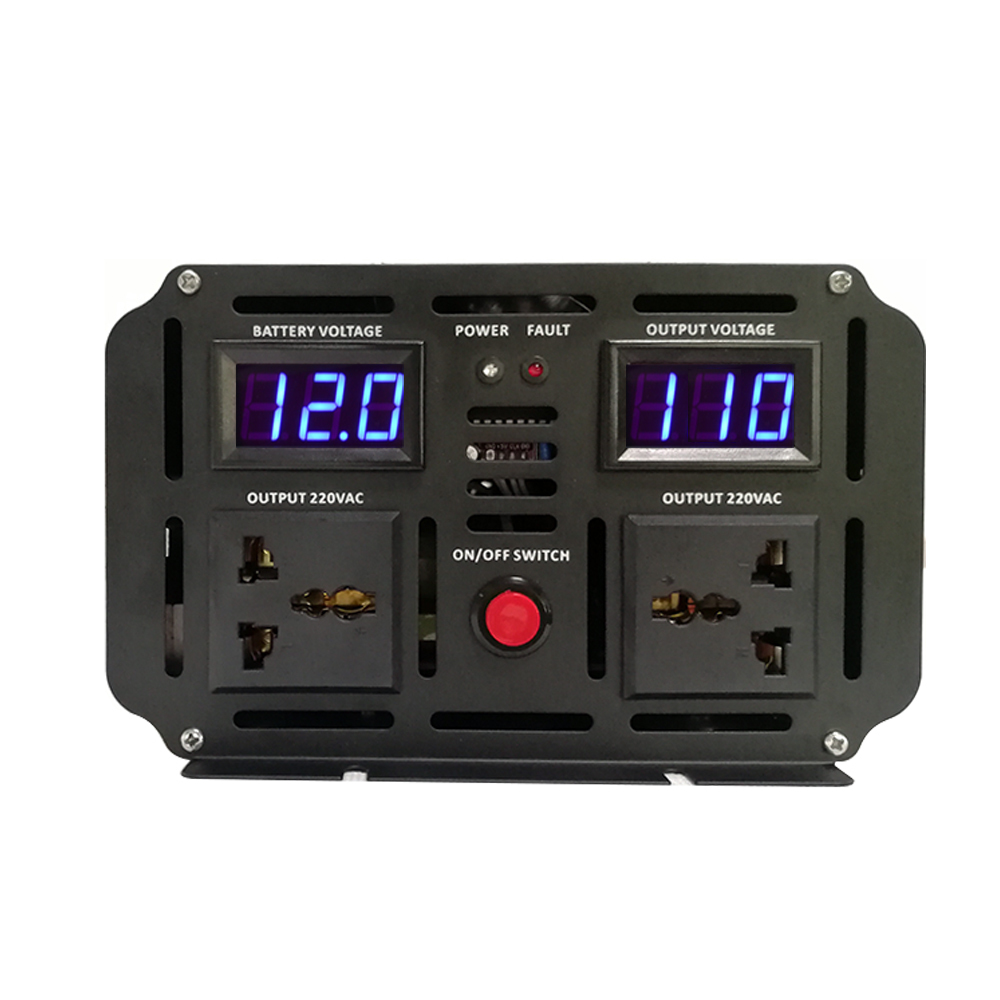

| LCD displayer | Display input and output voltages |
| Physical |
| Case | high quality anodized aluminum |
| Dimensions(mm) | 173X105X57 | 200X150X76 | 276X150X90 | 390X180X110 | 450X180X140 |
