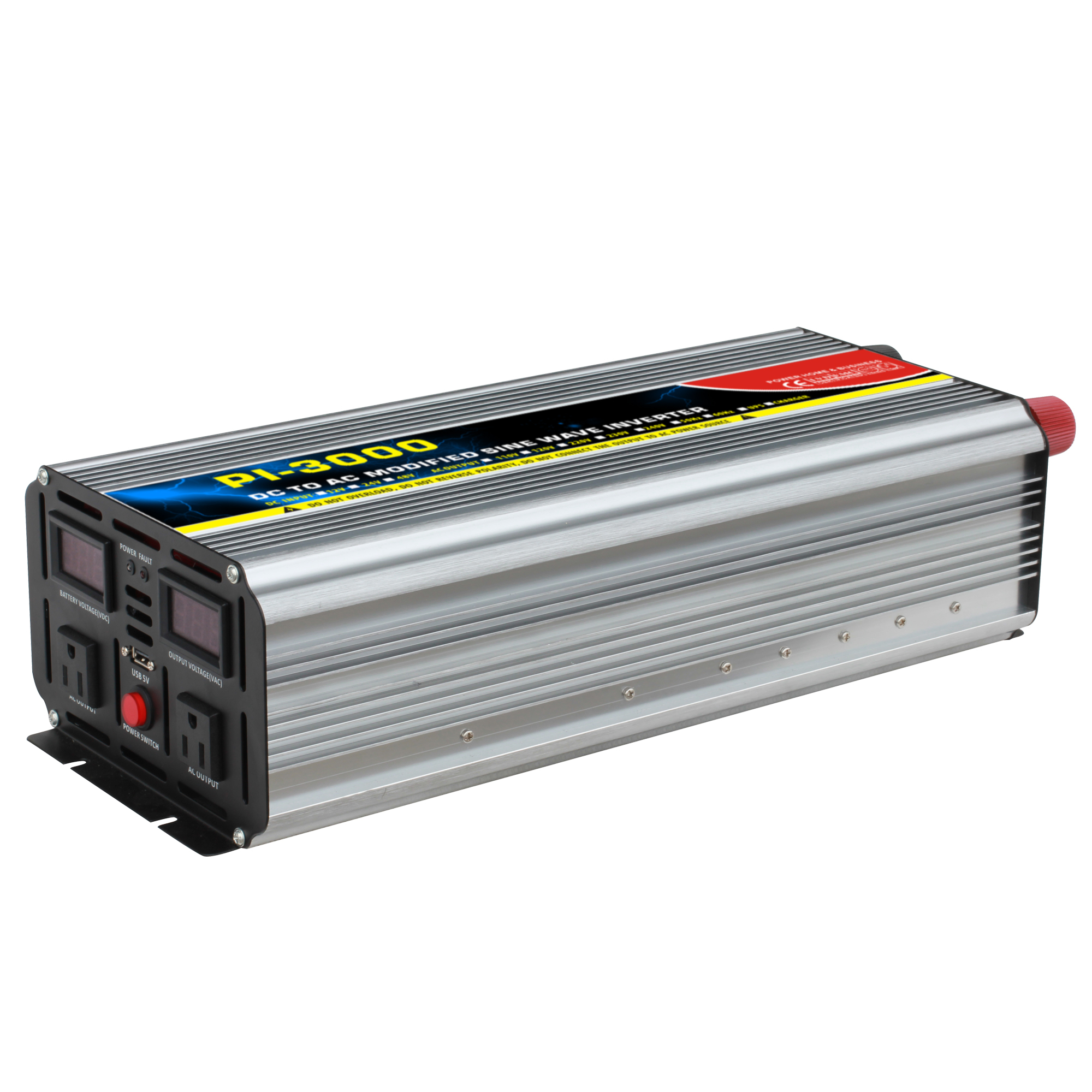

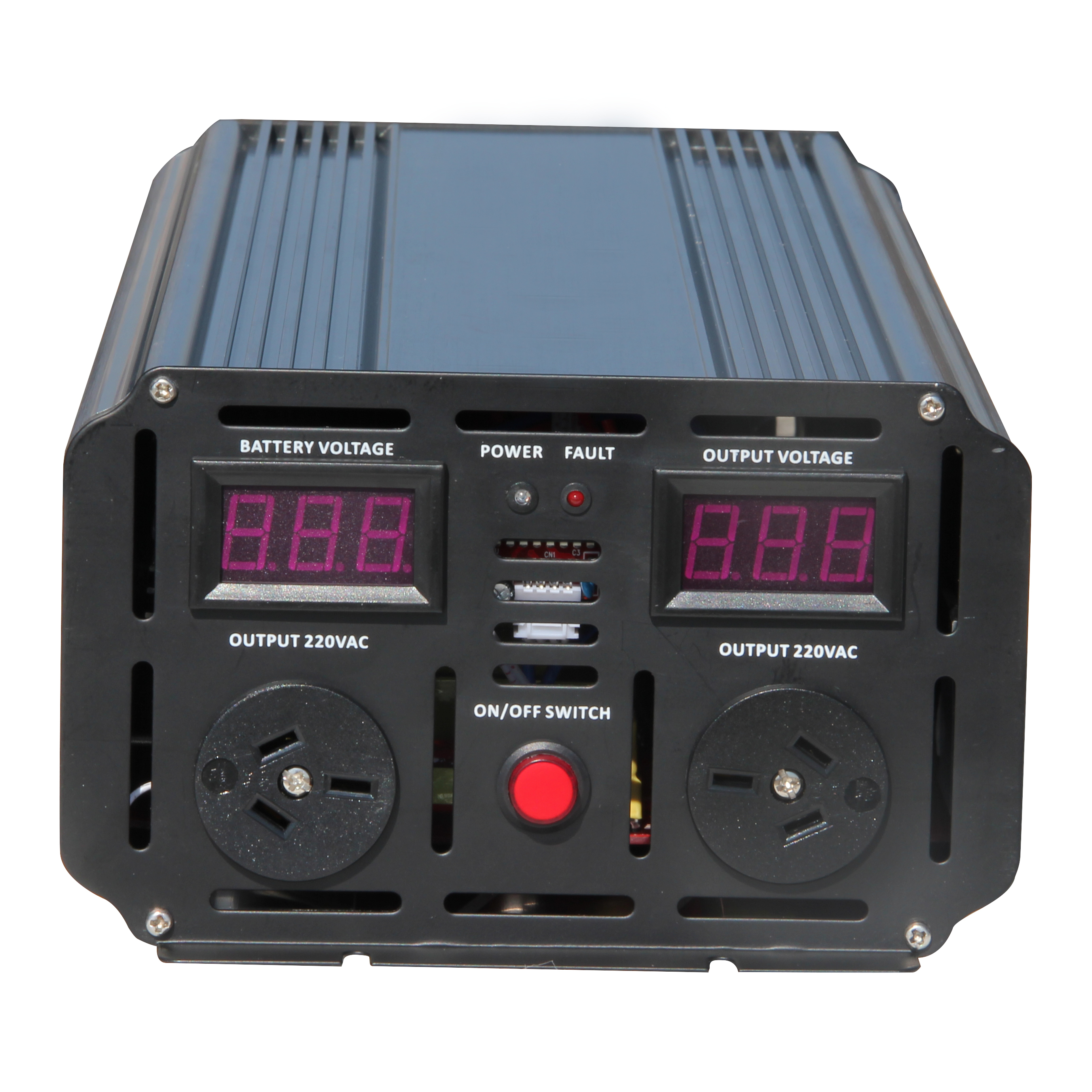

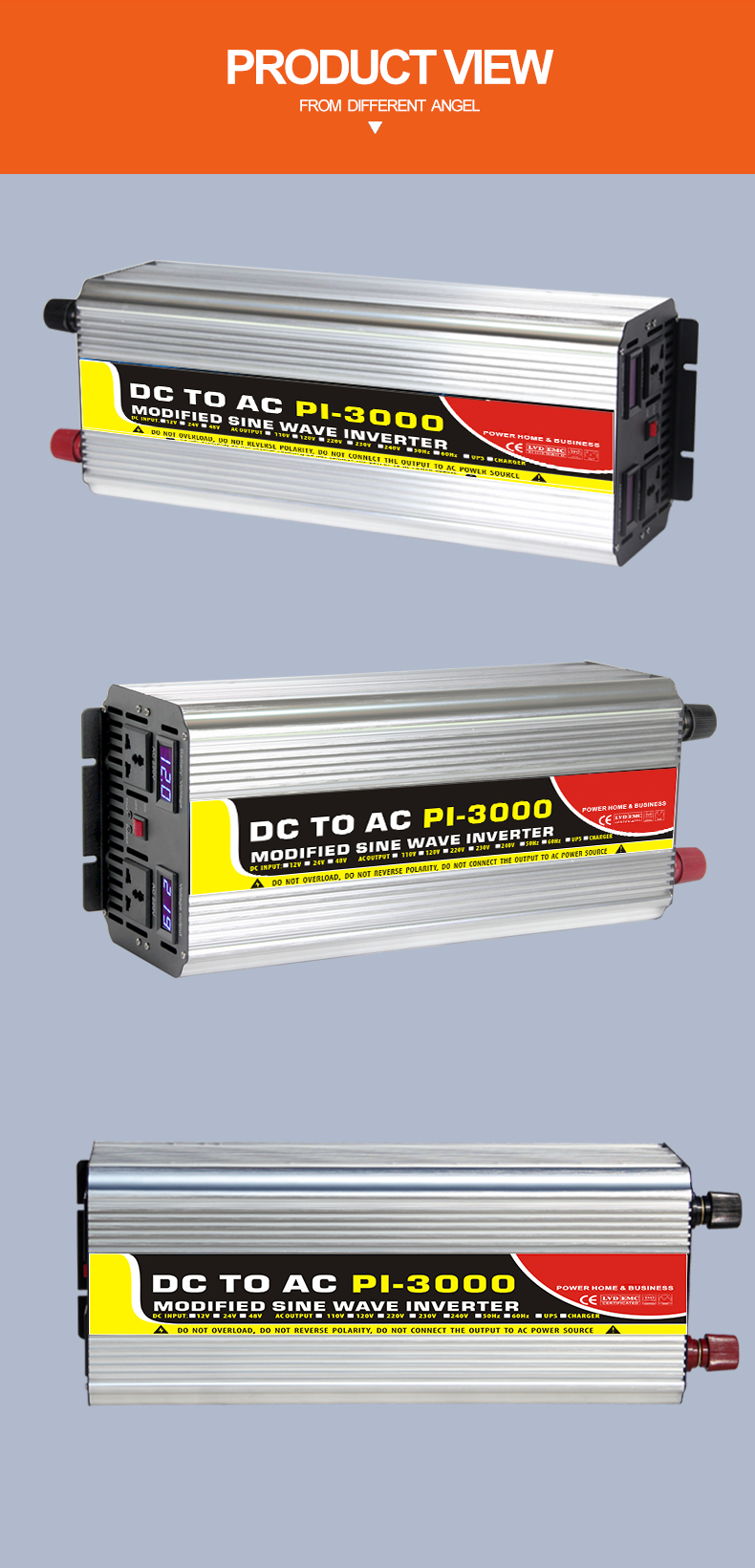

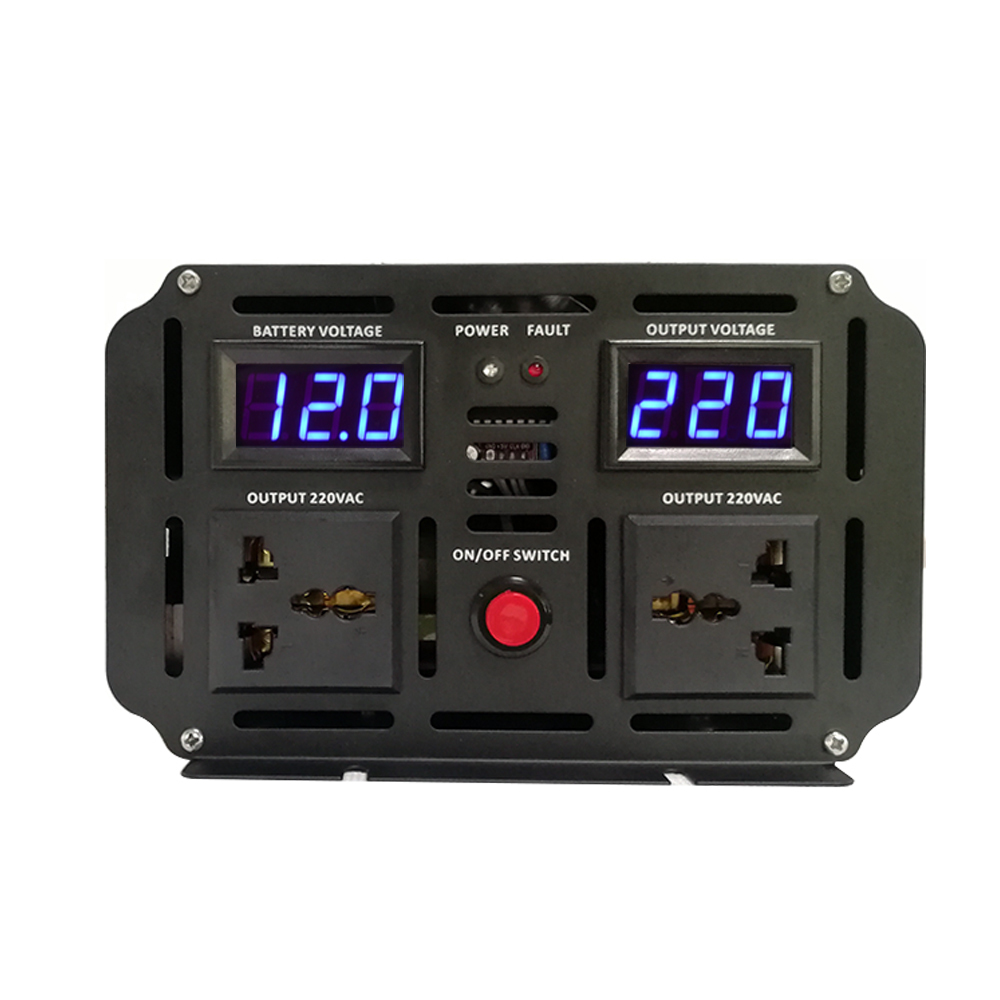

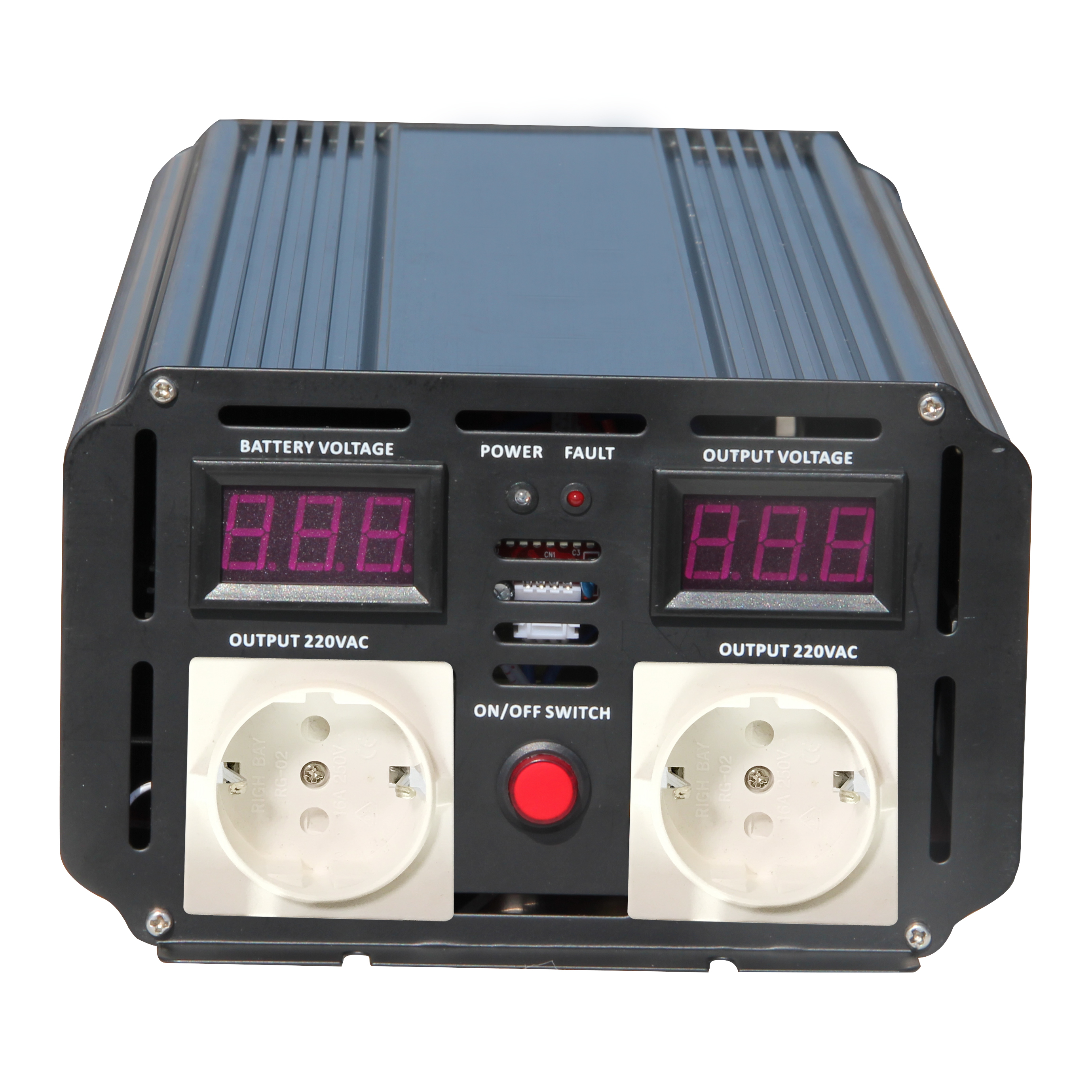

3KVA Modified sine wave power inverter PI-3000plus-SCIENTEK ELECTRICAL

MODEL	PI-1000	PI-1200	PI-1500	PI-2000	PI-3000	PI-3000 plus
power capacity	1000VA	1200VA	1500VA	2000VA	3000VA	3000VA
DC input
input voltage	12VDC/24VDC/48VDC/72VDC(factory set)
input voltage range	9.6-15V( for 12V standard)
Idle Current(@12V)	0.21A	0.43A	0.43A	0.47A	0.54A	0.54A
Efficiency	90%	90%	90%	90%	90%	90%

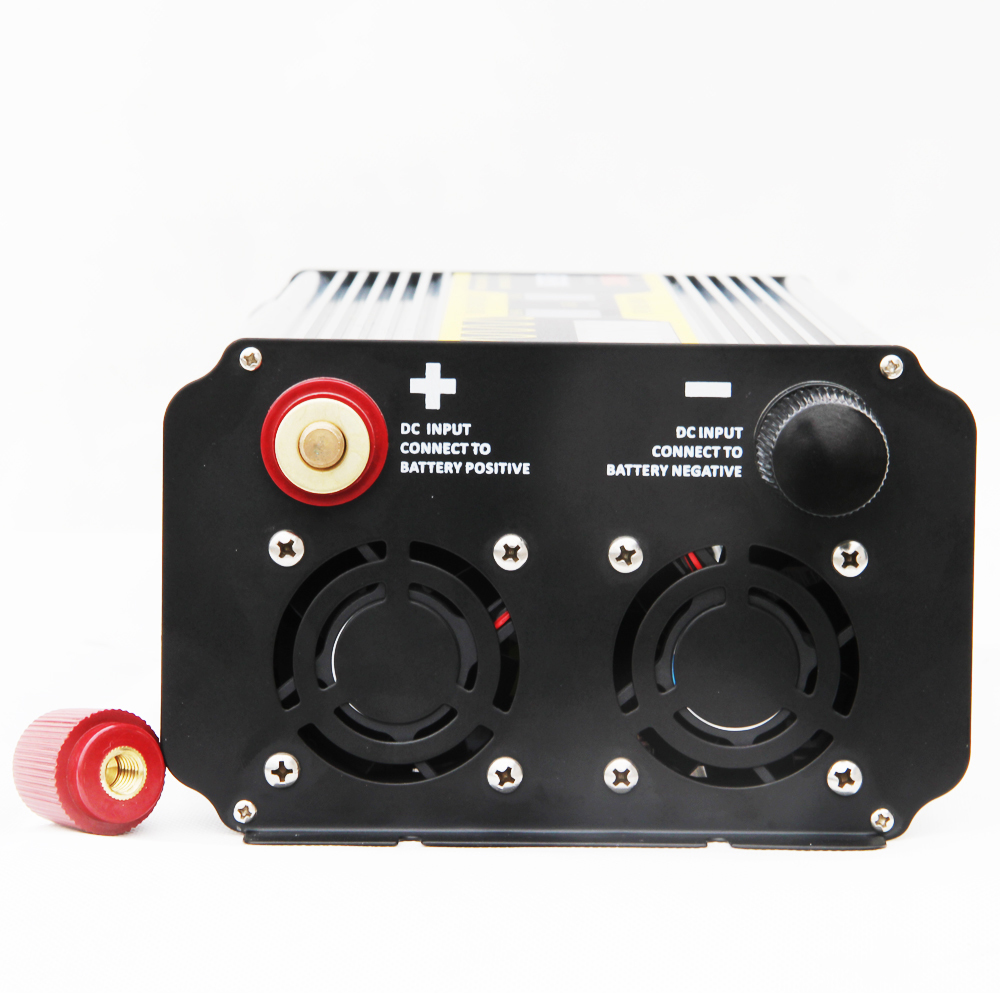

Input connector	Red and black DC input terminals
AC output
Output voltage	110V/220VAC(factory set)
Output voltage range	110V/220VAC±10%
continuous power	800W	1000W	1200W	1600W	2400W	2400W
surge power	1600W	2000W	2400W	3200W	4800W	4800W
output wave	Modified Sine Wave
output frequency	50/60Hz
output receptacle	Multinational Socket

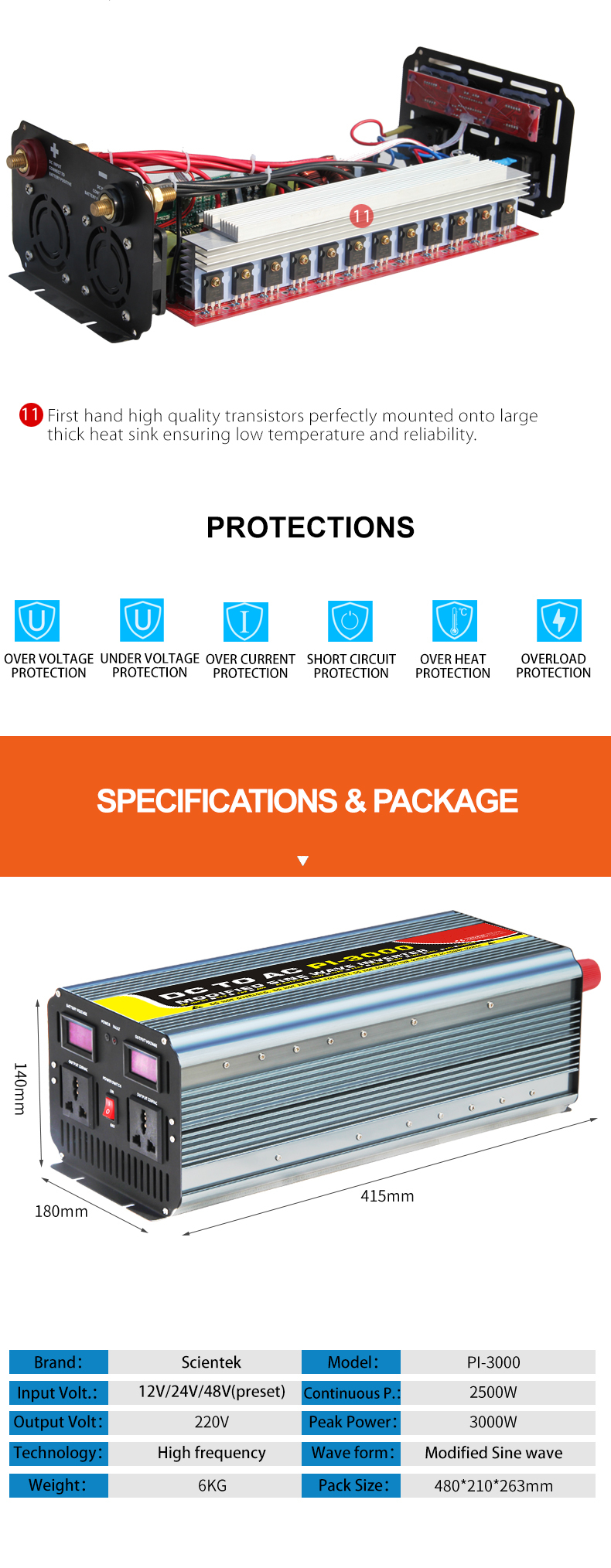

Protection
input DC under voltage	10V±0.5VDC
input DC over voltage	15.5V±0.5VDC
overload	auto shut down
DC polarity reverse	fuse protection
short circuit	auto shut down
over heat	auto shut down
Audible Alarm	input DC under/over voltage, fault, overload, overheat
Cooling	intelligent cooling fan
Display & Indicator

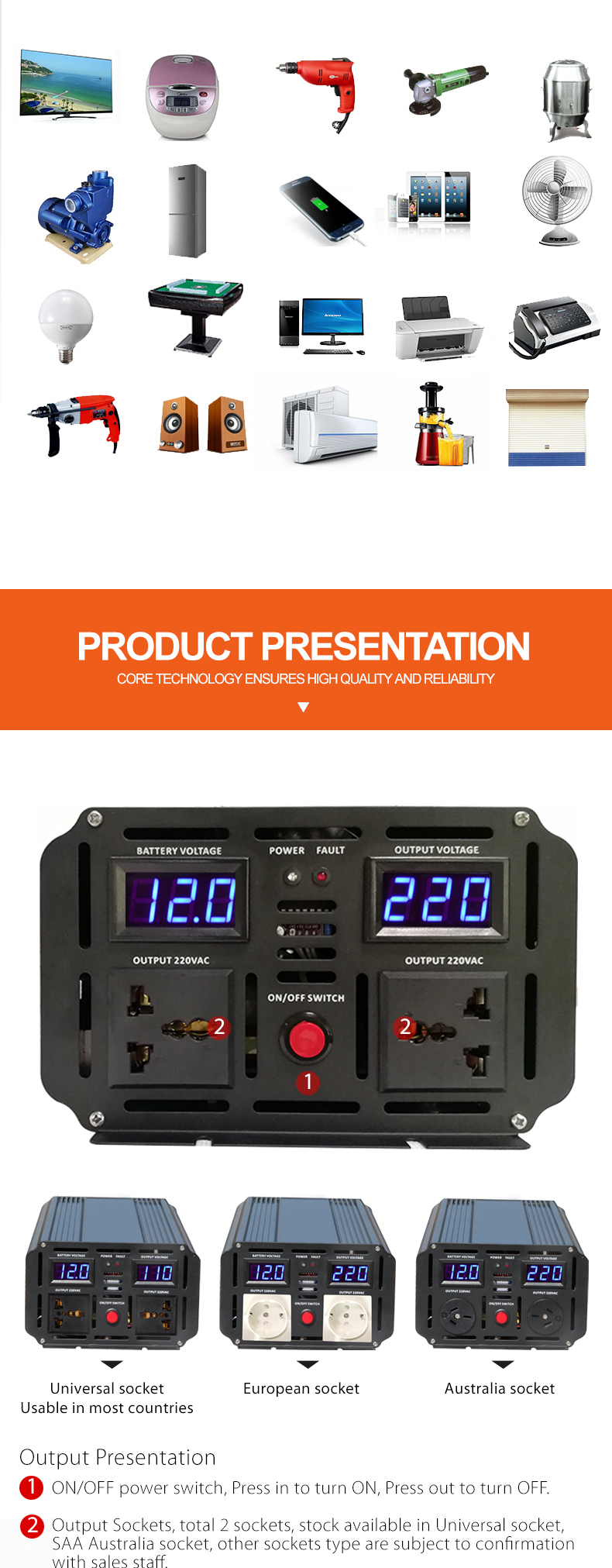

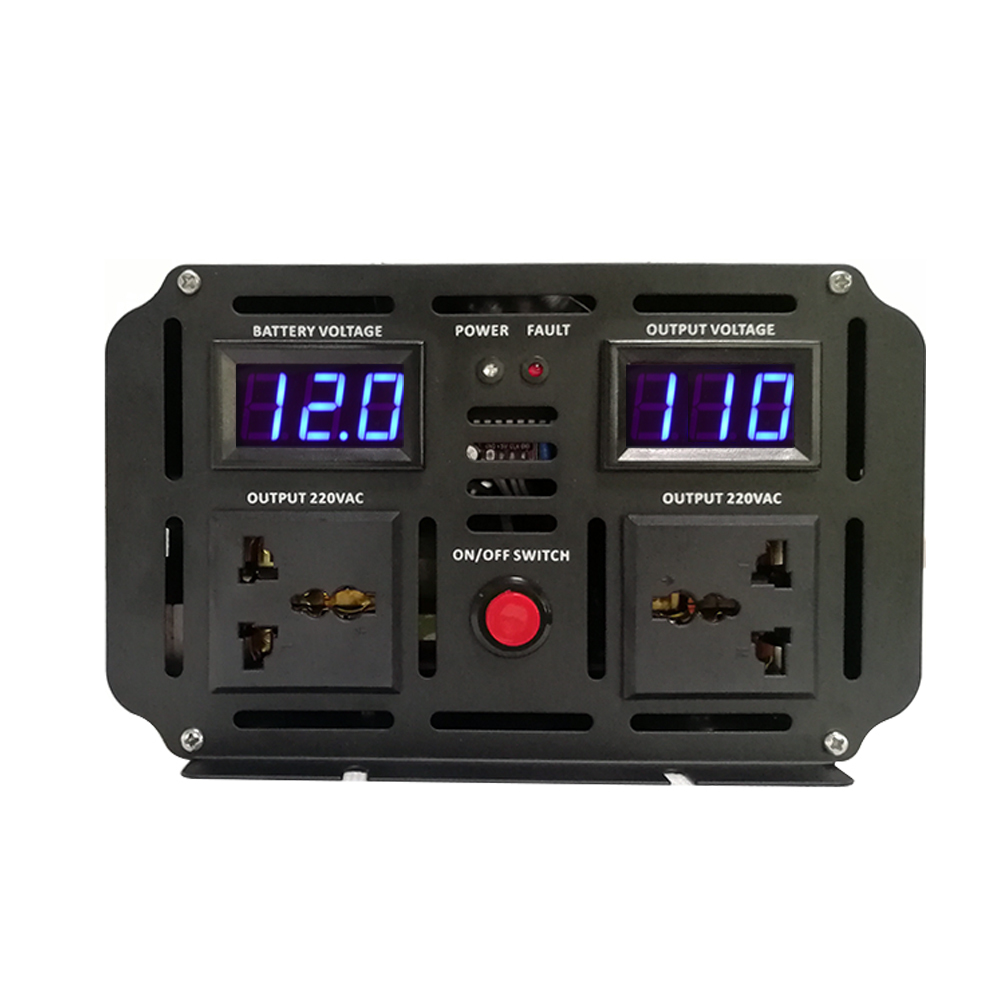

Indicator	LED indicator, Green LED glow if the device works properly, Red LED glow if the device is faulty or entering into protection mode.
LCD displayer	digital LCD display(optional)
Physical
Case	anodized aluminum
Dimensions(LXWXH)mm	200x150x90	276x150x76	276x150x76	276x150x90		390X180X110
Net Weight(kgs)	1.5	1.5	1.9	2.5	2.8	4.8

3KVA Modified sine wave power inverter PI-3000plus
