The main job of Ups would be to protect the load in the input power. After the electricity is off, it supplies electricity to the load, and only draws current from the battery during the main power failure or power outage. As soon as the UPS is operating normally because the inverter is switched off, any UPS is called"offline" at this moment. The offline system may work when there is no principal line. When the main power supply is not powered, the UPS can convert the battery energy into an electrical power supply. Normal use. Used in small non-critical software to prevent instantaneous electricity outages. The offline UPS provides the most elementary level of power protection along with the waveform of the inverter output is usually a square wave. In normal operation, if the primary power supply is present, the output frequency and voltage will track the input frequency and voltage, respectively.
An uninterruptible power source (UPS) may save time or power failures, surges, spikes, power outages, or power outages. If the primary power supply fails, then it will power the machine for some time. Although contemporary solutions and alternative methods are utilized to protect the system from damage due to surges, spikes, power outages, electrical interference, and power outages, power outages also put sensitive electric equipment at risk.
Choosing the correct UPS system to fulfill your needs and requirements might be a task, but knowing how UPS works might help you know more clearly that kind is appropriate for your requirements.

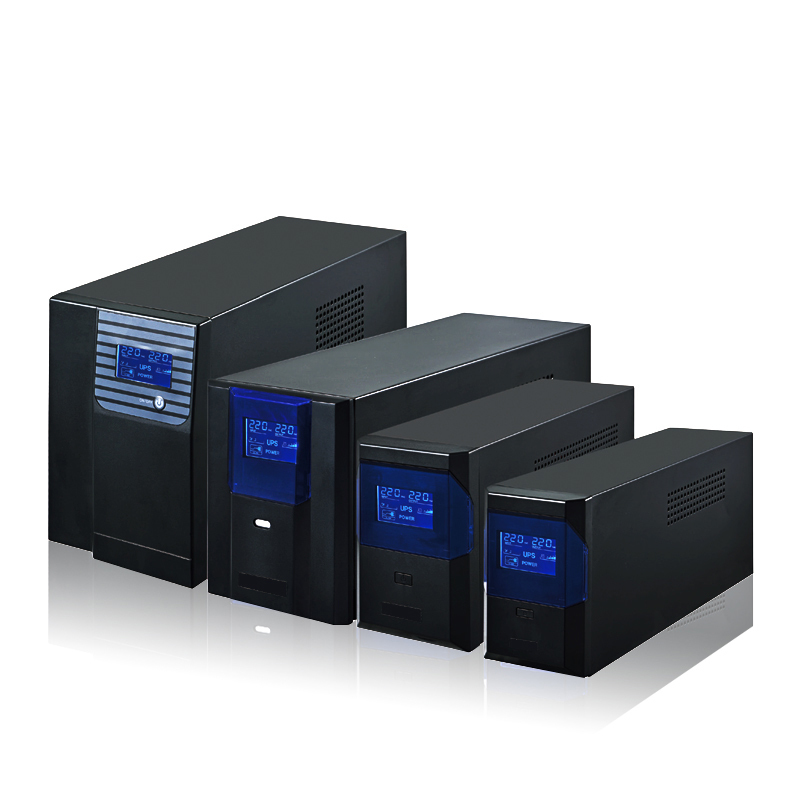

(Line interactive UPS-A series for personal computer)
The UPS system uses the DC electricity stored in the battery as a backup energy supply. The UPS protects the battery in the AC mains during the rectifier and control controller circuit. At the specific same moment, it supplies electricity to the output AC load. When a power failure occurs, the UPS will use the DC power billed in the battery and convert it into AC power through the inverter and supply it to the AC load.
Offline UPS systems may only offer fundamental functions, supplying surge battery and security short-term backup power. The standby unit together with its inverter remains in offline mode until the standby power is necessary. Though it gives only the simplest solutions, the offline uninterruptible power distribution could offer a backup runtime for a normal customer environment.
The protecting gear is usually attached directly to the mains. When the input voltage drops below a predetermined level or above a predetermined amount, the SPS' inner DC-AC inverter circuit (from the interior battery) will start. Then, the UPS automatically switches the attached gear to its DC-AC inverter output signal. The typical switching time is 25 milliseconds, based upon the period it requires the UPS to detect the voltage. UPS is intended to power equipment such as computers without leading to any power outages to the equipment.
When the major power failure or lower than regular loading is discovered, the UPS will hit the inverter and change the output to the side to provide the battery using the load. This transition involves a delay resulting from the opportunity to detect the principal power failure and change the relay, and also in that interval (normally two to 12 milliseconds), the output signal is disrupted.
Within an offline UPS, the whole AC electricity is run through distinct dedicated circuits. These circuits are intended to remove electrical issues like surge spikes, and the following filtering happens, the filtered AC power is fed into the load. When the power fails, then the battery has been discharged to the inverter circuit, so the load gets the necessary electricity. Since there are just two separate power cords, the output must be changed between both power supplies.
During regular operation, electricity from AC mains is supplied directly into the output via a static transfer switch. But unlike an online UPS, the inverter doesn't draw current from the battery before the primary power source (AC power) is disrupted. When the primary power source is disrupted, the battery will discontinue charging, and also the static switch will move the output to the side speedily.
The UPS usually includes 4 components, which are always collaborating to provide you with electricity in a power outage:
Provided that these elements work in the string, your UPS will make sure that after a power outage, the machine may nevertheless be powered. To guarantee the normal operation of the UPS system, it's suggested to organize preventative maintenance at least one time every year, which helps to confirm that the machine is functioning normally in all operating systems and also to guarantee that the unit is operating with the most recent firmware version.
Switch: If a fault occurs inside the UPS, the switch will provide protection. When the entire system fails, the switch will close the circuit by itself, and the input power will be directed to a separate circuit of the main power supply. The main purpose of the switch is to keep the system running even if the internal components of the UPS fail.
Rectifier: The rectifier is used to ensure that the battery is charged so that it is at an appropriate floating voltage. It converts alternating current (AC) to direct current (DC) and then uses this current to charge the UPS battery.
Battery: The battery is the most critical component in the UPS system. In the event of a power failure, power will be drawn from these batteries to support the main equipment. The UPS battery system consists of a long series of stored batteries and is connected in series for continuous power supply. Other batteries can be added to the battery system to further increase the running time of the UPS.
Inverter: The inverter is the brain of the UPS system. It ensures that the electricity stored in the battery can be used as electricity. In an online UPS, the inverter is active and used to seamlessly switch to the battery; while in an offline UPS, if the power supply is interrupted, the inverter must be activated through a switch. The consistency and stability of the power output are one of the main purposes of the inverter.
The offline UPS system usually runs offline, and the load is usually powered by the mains.
When the mains power level exceeds acceptable limits or fails, the load will be transferred from the mains line to the UPS.
The actual transmission time is very fast, but the detection time is a bit long, so offline UPS is not as reliable as online UPS.
When using an offline UPS,(Low frequency DC to AC solar inverter with MPPT charger TPS series) the UPS output from the main power supply is provided through a built-in EMI/RFI filter that provides peak and transient protection for the load by clamping the peak voltage to a pre-defined level. When the main power supply fails or fluctuates outside the operating range of the UPS, the relay connects the load to the inverter output (resulting in a transmission time of 4-8ms).
The offline UPS system consists of a battery pack, charger, and power semiconductor switch. The switch connects the main power supply to the load and the battery. Therefore, the battery pack remains charged during normal operation.
However, when the main power source cannot provide the required power (or if it satisfies the abnormal function), the static switch connects the load to the inverter to provide energy from the battery (energy storage operation).
The transition time from normal operation to energy storage operation is usually less than 10 milliseconds. This short time interval does not affect the typical computer load.
With this configuration, when a power failure, drop, or spike occurs, the UPS can simply transmit the utility power to the load. At the same time, the UPS switches the load to battery power and disconnects the utility power until it returns to an acceptable level.
For small personal computers and home applications, the rated power of an offline UPS system is usually 600 VA.
Overvoltage
Overvoltage means that the power provided is greater than the required power and will cause overheating and damage. Unlike a surge, this electricity will last for a while and cause different problems.
Power surge
The sudden increase in power flowing through your device is usually caused by a lightning strike. This can cause a sudden increase in power and then decrease, which can cause damage to electrical equipment.
Undervoltage
Also known as power shortage, Undervoltage occurs when the power supplied is less than the required power. This may be due to the sudden need for electricity in other areas or problems with the power grid, insufficient flow, resulting in damage and loss of activity data.
power failure
Short-term or long-term power failure. There may be many reasons for power interruption, but the main reason for data loss and system downtime may be serious consequences.
By providing constant power, UPS enables you to deal with these problems. If it is completely interrupted, the UPS system can moderate the power flow and jump in through the charged battery.
When the mains power supply is normal, the UPS outputs the mains power directly to the load with little or no processing, and has poor attenuation of mains noise and surge.
2. With conversion time, protection is the lowest. A
3. Simple structure, small size, lightweight, easy control, and low cost.
Off-line UPS usually provide (or route) the input mains power directly to the output through the relay contacts. The offline UPS is usually in the battery charging state, and the inverter is switched to the working state in an emergency, and the DC power provided by the battery is converted into a stable AC power output. It is mainly suitable for occasions where the fluctuation of the main is not large and the power supply quality is not high. When the switch is not a big problem, it can be used for the automatic or manual transfer or transfer switch between the main power supply, portable generator or emergency generator set, solar power or battery power supply. When cost is the main and considerable factor.
The switching speed of the offline UPS is about 5 ms, which is enough to prevent the computer from shutting down. But the speed is not fast enough to ensure the smooth operation of sensitive equipment in the hospital. Since it remains off during normal operation and the battery is not used continuously, the efficiency of the system is improved. Offline UPS systems are more economical and more energy efficient because they are cheap to purchase and the charger and inverter will not be under load all the time. People with critical loads will choose an online UPS system because it can always protect sensitive equipment and data from main power problems.
Output power and battery capacity are two different standards, don't confuse. The power output corresponds to the maximum load that can be obtained from the UPS, and the battery capacity refers to the amount of electricity that the battery can store. If the total load exceeds the power capacity of the UPS, the power will be turned off immediately regardless of the available power on the UPS. The more connected devices, the more power is consumed. It is important to buy a UPS with a power output higher than the power required by the equipment.
Cost: The price of the UPS system is between 1500 and 250,000, the cheapest of which is APC's home UPS. It provides a backup battery and protects the device from power surges. It provides users with enough time to save their work and prevent data loss. During a power failure, the battery becomes the main power source for the device. UPS systems usually have a shutdown indication system, such as a buzzer or LCD screen, used to display the remaining battery time. The most expensive type is the online UPS system, which can support large power loads and is usually used by large companies.
Efficiency: The market is dominated by APC's efficient UPS system. The efficiency can be determined by comparing the expected load capacity with the output efficiency under load capacity. Global warming is undoubtedly the main issue today, and it is important to consider efficiency when buying electronic equipment.
