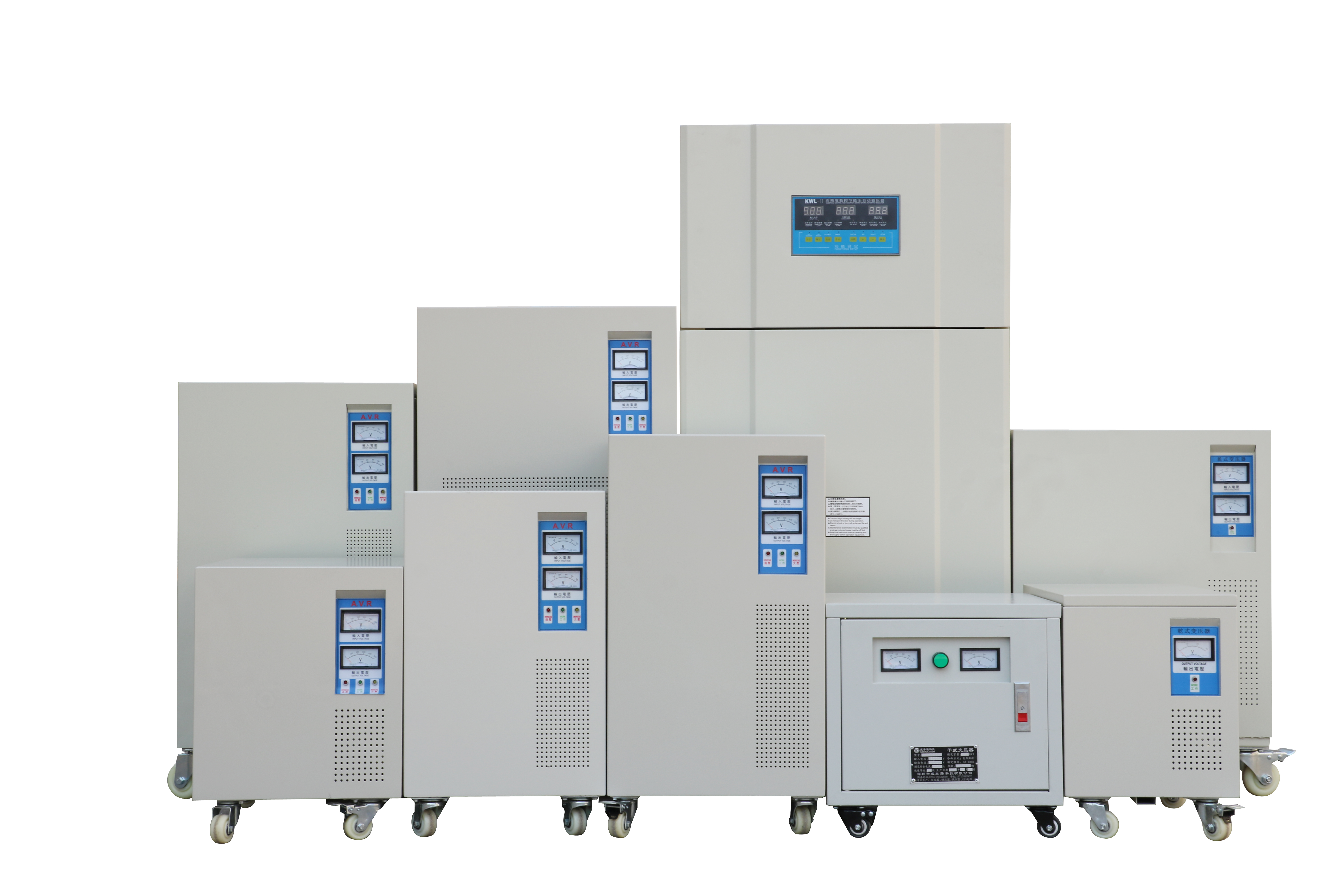

SPECIFICATIONS OF 3 PHASE AUTOMATIC VOLTAGE REGULATOR SBW SERIES
| Model | SBW-10K | SBW-20K | SBW-30K | SBW-50K | SBW-60K | SBW-80K | SBW-100K | SBW-150K | SBW-200K | SBW-250K | SBW-300K |
| Capacity | 10KVA | 20KVA | 30KVA | 50KVA | 60KVA | 80KVA | 100KVA | 150KVA | 200KVA | 250KVA | 300KVA |
| Technology | Servo motor type |
| Phase | Three Phase |
| Input Voltage | 380V/400V/415V±20% ( wider range is available subject to special request and higher cost) |
| Output Voltage | 380V/400V/415V |
| Output Precision | 3% |
| Frequency | 50/60Hz |
| Efficiency | ≥96% |
| Isolation Grade | Grade A |
| Dielectric Strength | AC 2000V/1min no flashover, no break down |
| Response speed | 0.1s |
| Waveform Distortion | <0.1% output waveform distortion,No Incremental Harmonic |
| Temperature rising | Net Temperature rising: <60℃ |
| Regulation method | Seperative regulation of each phase, automatic balance phase output |
| Display | Digital LED display, display real time phase voltage |
| Wiring | Three phase four wire(A,B,C Neutral,Grounding) |
| Protection | overload,high voltage, low voltage, short circuit, over heat protection,lack p[hase protection,bypass function |
| Cooling Method | Intelligent cooling fan |
| Operation Temperature | -5℃～40℃ |
| Relative Humidity | <90% |
| Dimension(mm) | 350*500*470 | 380*500*710 | 350*620*680 | 450*750*780 | 500*1100*800 | 500*1100*850 | 600*1200*1100 | 750*1400*1150 | 800*1500*1200 | 800*1500*1200 | 900*1800*1300 |
| Gross Weight(kgs) | 35 | 80 | 120 | 180 | 220 | 250 | 350 | 410 | 450 | 480 | 550 |
| Remarks: | The above specifications are based on factory standard specifications, customized designs are available subject to confirmation. |
