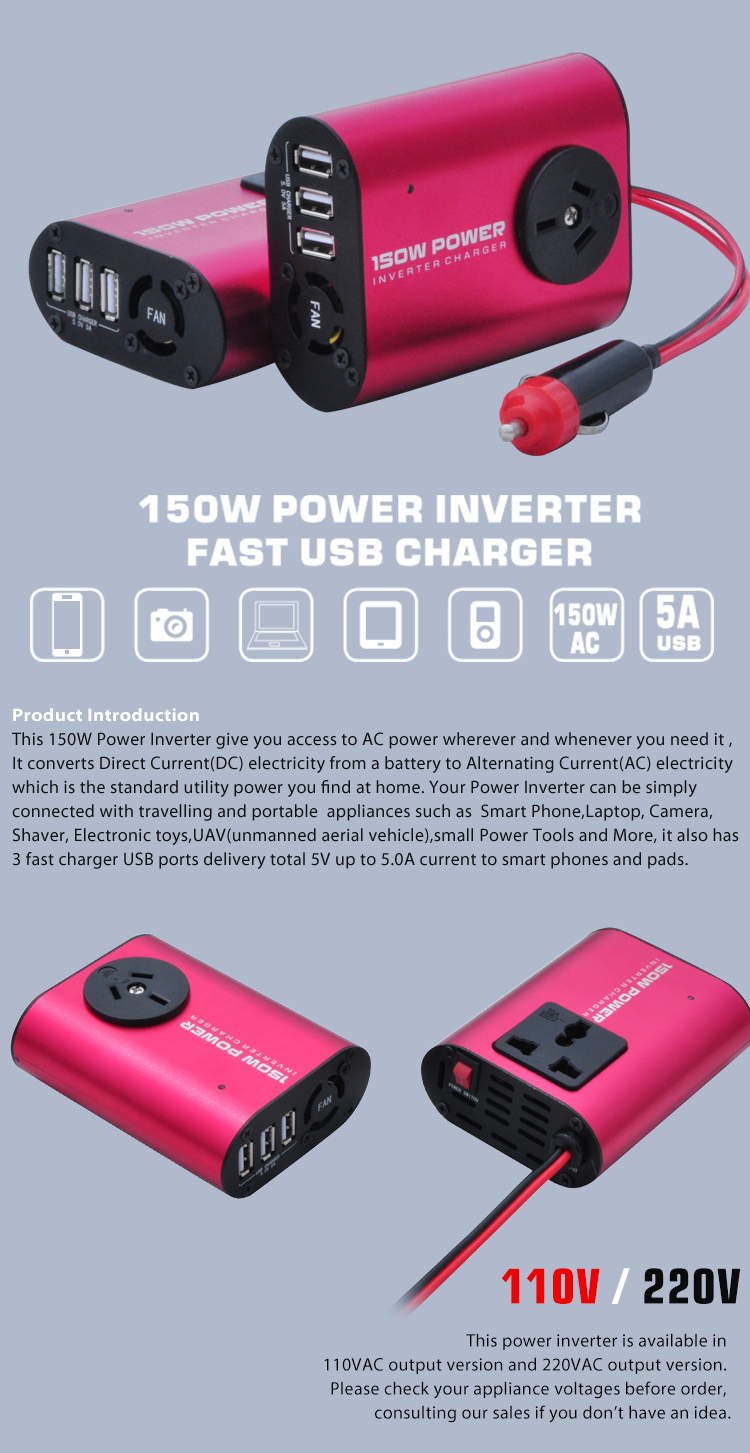

Product Introduction
This 150W Power Inverter give you access to AC power wherever and whenever you need it ,
It converts Direct Current(DC) electricity from a battery to Alternating Current(AC) electricity
which is the standard utility power you find at home. Your Power Inverter can be simply
connected with travelling and portable appliances such as Smart Phone,Laptop, Camera,
Shaver, Electronic toys,UAV(unmanned aerial vehicle),small Power Tools and More, it also has
3 fast charger USB ports delivery total 5V up to 5.0A current to smart phones and pads.
MODEL | PI-150 |
power capacity | 150VA |
DC input |
input voltage | 12VDC |
input voltage range | 9.6-15V( for 12V standard) |
Idle Current(@12V) | 0.15A |
Efficiency | 85% |
Input connector | Cigarette plug/EC5 connector |
AC output |
Output voltage | 220VAC(factory set) |
Output voltage range | 110V/220VAC±10% |
continuous power | 150W |
surge power | 150W |
output wave | Modified Sine Wave |
output frequency | 50/60Hz |
output receptacle | Multinational Socket |
USB Charger |
USB Charger | 3 USB, 5V.5.1A |
Protection |
input DC under voltage | 10V±0.5VDC |
input DC over voltage | 15.5V±0.5VDC |
overload | auto shut down |
DC polarity reverse | fuse protection |
short circuit | auto shut down |
over heat | auto shut down |
Audible Alarm | input DC under/over voltage, fault, overload, overheat |
Cooling | intelligent cooling fan |
Display & Indicator |
Indicator | LED indicator, gree LED glow if the device works properly, Red LED glow if the device is faulty or entering into protection mode. |
LCD displayer | N/A |
Physical |
Case | anodized aluminum |
Dimensions(LXWXH)mm | 110x80x35 |
Net Weight(kgs) | 0.2 |
